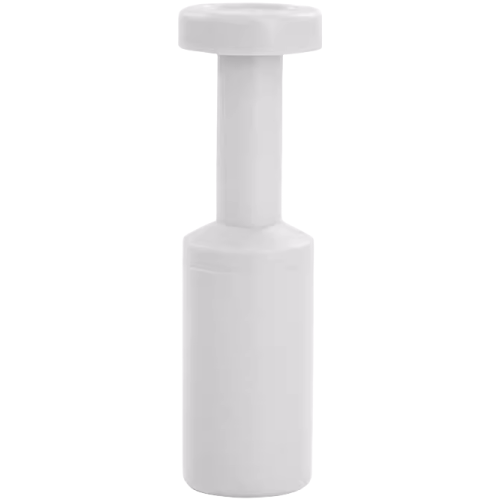

Airtac X-APP Fitting - Plug X-APP4
AirTAC X-APP4 Quick Connect Plug Specifications
- Model: X-APP4
- Type: One-touch push-to-connect tube plug
- Thread specification: M5×0.8 (external thread)
- Applicable tubing OD: Ø4mm (flexible pneumatic tubing)
- Material: PPS resin body + brass nickel-plated insert
- Seal material: HNBR rubber
- Pressure range: 0–1.0 MPa
- Temperature range: -20℃ to 80℃ (non-condensing)
- IP rating: IP40 (standard), IP67 available with optional cover
- Vibration resistance: 10–55Hz, 1.5mm double amplitude
- Weight: 3.8g ±0.2g
- Dimensions: 12.5mm(L) × 10mm(W) × 14.2mm(H)
- Certification: RoHS compliant, REACH SVHC-free
Leak-proof pneumatic plug featuring color-coded identification (standard blue body) and tool-free installation. Engineered with a dual-lock mechanism combining collet grip and O-ring seal, achieving 98% retention force maintenance after 50 connection cycles. Compatible with air, inert gases, and vacuum systems.
- Modular pneumatic circuit termination in factory automation
- Vacuum port sealing on pick-and-place robots
- Branch line isolation during maintenance of packaging machinery
- Pressure sensor calibration systems
- Medical gas distribution panel blanking
Installation protocol:
Cut tubing square (max 0.5° angular tolerance), insert fully until audible click.
For permanent installations, apply 0.5N·m torque using 5mm hex key on side port.
| Property | Property Value |
|---|---|
| sku | X-APP4 |
