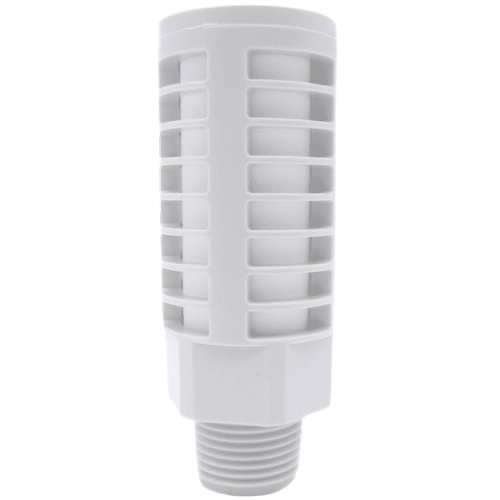

Airtac X-PAL Adapter - Plastic Foam Silencer X-PAL03
AirTAC X-PAL03 Plastic Foam Silencer Specifications
- Model: X-PAL03
- Material: Polyurethane foam (oil/chemical resistant)
- Connection type: Push-in fitting (1-touch installation)
- Thread size: M5 × 0.8
- Operating pressure: 0.05–1.0 MPa
- Temperature range: -10℃ to 60℃
- Noise reduction: 15-20 dB(A) @ 0.5 MPa
- Flow capacity: 120 L/min (ANR)
- Installation torque: 0.5 N·m max
- IP rating: IP40 (dust protected)
- Color: Light gray (RAL 7035 equivalent)
- Weight: 12 g ±0.5g
- Dimensions: 25mm(L) × 18mm(W) × 18mm(H)
Multi-layer porous silencer featuring a tapered honeycomb structure that combines airflow diffusion and viscous friction principles. The dual-stage foam design (40 PPI outer layer + 60 PPI inner core) effectively converts turbulent air energy into heat through viscous dissipation. Includes anti-ejection safety ribs and UV-stabilized housing.
- Pneumatic cylinder exhaust noise suppression
- Air preparation unit muffling (after FRL systems)
- Vacuum generator exhaust ports
- Medical gas control systems
- Food processing pneumatic lines
- Semiconductor manufacturing equipment
Maintenance protocol:
Replace every 5,000 operating hours or when airflow resistance increases by 15%.
Clean with compressed air (≤0.3 MPa) weekly in high-humidity environments.
