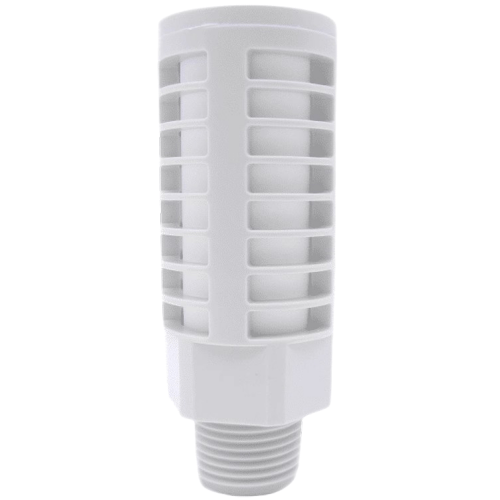

Airtac X-PAL Adapter - Plastic Foam Silencer X-PAL06
AirTAC X-PAL06 Plastic Foam Silencer (Muffler) Specifications
- Model: X-PAL06
- Thread type: M5×0.8 (metric) / Optional PT1/8 (NPT available)
- Material: POM (Polyoxymethylene) body + Polyurethane foam element
- Effective frequency range: 500-7000 Hz
- Noise reduction: 15-25 dB(A) depending on airflow
- Max operating pressure: 1.0 MPa
- Temperature resistance: -10℃ to 60℃ (non-condensing)
- Flow rate capacity: 100 L/min (ANR)
- Weight: 3.8 g ±0.2g
- Dimensions: 12mm(Ø) × 18.5mm(H) (excluding thread)
- Thread length: 5.5mm
- Color: Natural white (standard) / Custom colors on request
Micro-sized pneumatic exhaust silencer with spiral airflow design, featuring a three-stage noise reduction structure (expansion chamber → foam absorption → directional diffusion). The sintered brass thread insert ensures durability against repeated installations. The open-cell foam is oil-resistant and washable for maintenance.
- Miniature solenoid valve exhaust ports in SMC-compatible systems
- Medical device pneumatic circuits requiring low noise operation
- Food processing machinery with frequent washdown requirements
- Laboratory analytical instrument air exhausts
- 3D printer pneumatic end-effector noise suppression
Installation note:
Hand-tighten with 0.8-1.2 N·m torque. Replace foam element every 2,000 operating hours or when airflow resistance increases by 15%. Use thread sealant only on male threads, avoiding contact with foam media. For vertical downward installation, add drip loop in tubing to prevent liquid ingress.
| Property | Property Value |
|---|---|
| sku | X-PAL06 |
