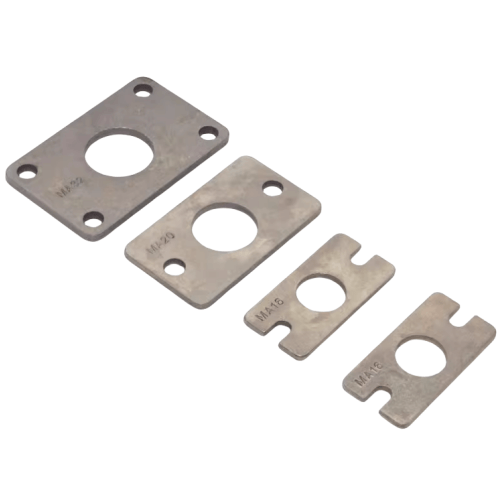

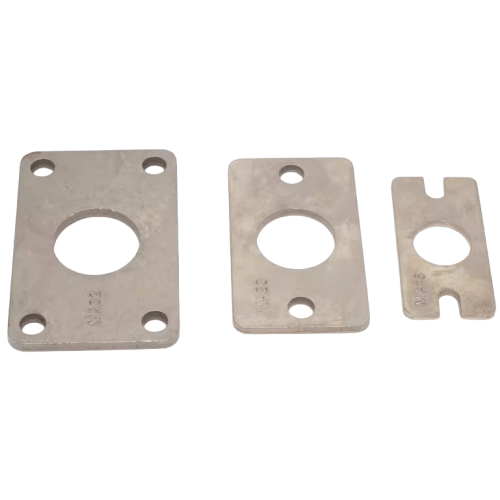

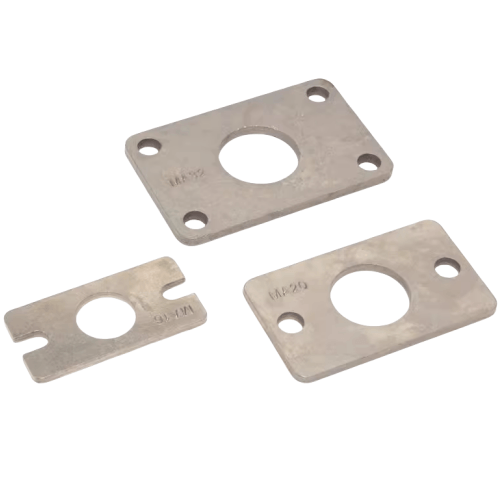

Airtac F-MA-FA Front Flange Mounting Plate Kit F-MA40FA
AirTAC F-MA-FA Front Flange Mounting Plate Kit (F-MA40FA) Specifications
- Model: F-MA40FA
- Type: Pre-assembled front flange mounting plate kit
- Compatible cylinder series: MA/FA series (specifically designed for MA40x50-FA cylinders)
- Material: Aluminum alloy (AL6063-T5)
- Surface treatment: Black anodized
- Mounting hole pattern: 4×M6 threaded holes (8mm depth)
- Center distance: 80mm × 80mm square pattern
- Bore diameter alignment: Ø40mm (precisely matched to cylinder piston)
- Plate thickness: 12mm
- Weight: 480g ±2%
- Dimensions: 100mm(L) × 100mm(W) × 12mm(H)
- Operating temperature: -20℃ to 80℃
- Max static load capacity: 500kg (vertical mounting)
- Max dynamic load: 200kg (horizontal applications)
- Mounting bolt torque: 5.4-6.6 N·m (M6 bolts)
- Compliance: RoHS compliant
Precision-engineered mounting solution for stable cylinder fixation, featuring CNC-machined alignment surfaces and vibration-damping design. The integrated sealing groove ensures airtight connection with cylinder bodies. Includes pre-installed shock-absorbing washers for reduced mechanical noise.
- Pneumatic press machine tooling fixtures
- Automated packaging line cylinder mounting
- Robotic arm joint articulation points
- Material handling system vertical lifts
- CNC machine tool clamping mechanisms
Installation protocol:
Apply medium-strength thread locker (Loctite 243 recommended) on bolts.
Use torque wrench for even pressure distribution. Perform concentricity
check with dial indicator (max 0.05mm runout allowed).
Critical note:
Avoid direct contact with cutting fluids – apply protective coating
(VCI paper or anti-corrosion spray) if used in machining environments.
| Property | Property Value |
|---|---|
| sku | F-MA40FA |
