Airtac F-HLSL-B Front and Rear End Hydraulic Shock Absorber Complete Kit F-HLSL12B

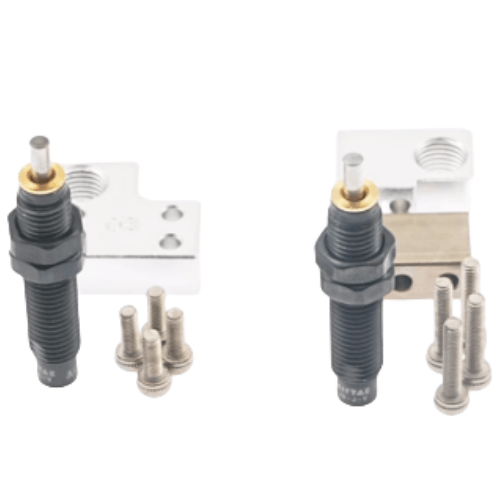

AirTAC F-HLSL-B Series Hydraulic Shock Absorber with Front/Rear Mounting Kit (F-HLSL12B)
- Model: F-HLSL12B
- Type: Pre-assembled hydraulic damper with universal brackets
- Maximum impact energy: 1.4 J/cycle
- Maximum impact speed: 1.5 m/s
- Maximum allowable mass: 55 kg
- Stroke: 12 mm (±1 mm)
- Adjustment type: Oil viscosity-based self-regulation
- Mounting orientation: Horizontal or vertical (bracket adjustable ±15°)
- Housing material: Chrome-plated steel (SCM435)
- Seal type: Multi-lip NBR seals with dust wiper
- Operating temperature: -10℃ to 80℃
- Oil capacity: 12 cm³ (ISO VG32 equivalent)
- Weight: 0.68 kg (complete assembly)
- Dimensions: 98mm(L) × 42mm(W) × 42mm(H) (excluding bracket protrusions)
- Surface treatment: Black oxide coating (MIL-DTL-13924D Class 4)
- Cycle life: ≥1,000,000 cycles (at rated load)
- Protection rating: IP54 (standard configuration)
Pre-lubricated hydraulic shock absorber with integrated mounting hardware, designed for precision deceleration in repetitive motion systems. Features temperature-compensated damping via special silicone oil blend (viscosity index 320) and anti-rotation collar for stable alignment. Includes corrosion-resistant M6×25 mounting bolts and spring washers.
- Industrial robot end-effector cushioning
- CNC machine tool automatic door mechanisms
- High-speed packaging equipment stoppers
- Automated warehouse shuttle dampers
- Press machine ejection systems
Installation guidance:
Apply thread locker (LOCTITE 243 recommended) on mounting bolts.
Perform 50 test cycles before full operation. Re-oil every 500,000 cycles
using AirTAC SH-32 damping fluid. Avoid side-impact loads exceeding 20N.
| Property | Property Value |
|---|---|
| sku | F-HLSL12B |
| Bore Diameter | 12mm |
