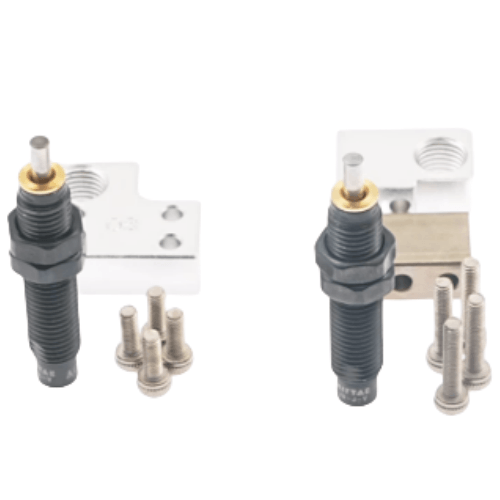

Airtac F-HLSL-B Front and Rear End Hydraulic Shock Absorber Complete Kit F-HLSL16B
AirTAC F-HLSL-B Series Hydraulic Shock Absorber (F-HLSL16B Complete Package)
- Model: F-HLSL16B (Complete assembly with front/rear mounting)
- Type: Adjustable hydraulic energy absorber with built-in oil buffer
- Energy capacity: 0.6 N·m/cycle
- Max. absorption energy: 1.8 J
- Piston rod diameter: Ø16 mm
- Stroke length: 15 mm ±2mm
- Operating temperature: -10℃ to +80℃
- Fluid viscosity range: 15-800 cSt
- Max. side load capacity: 300 N
- Housing material: Aluminum alloy (anodized surface)
- Seal material: HNBR rubber with PTFE coating
- Weight: 0.68 kg (complete assembly)
- Dimensions: 68mm(L) × 34mm(W) × 34mm(H)
- Mounting thread: M10×1.25 (both ends)
- Impact velocity range: 0.1-1.5 m/s
- Repeat positioning accuracy: ±0.2mm
Precision-engineered hydraulic damper with dual-stage buffering mechanism, featuring 5-position adjustable damping force via rotary knob. The F-HLSL16B comes pre-assembled with corrosion-resistant mounting brackets and includes anti-vibration shims for metal-to-metal contact surfaces. Requires periodic oil replenishment (ISO VG15-32) through the integrated fill port.
- High-cycle CNC machine tool axis end stops
- Automated warehouse shuttle cart deceleration
- Packaging machinery rotary arm stabilization
- Robotic welding arm end-of-stroke damping
- Elevator car emergency buffer systems
Installation protocol:
Mount vertically with arrow marking facing impact direction. Allow 2-3 warm-up cycles before final torque adjustment.
Lubricate guide rods monthly with EP2 grease. Maximum side angular tolerance: ±3°.
| Property | Property Value |
|---|---|
| sku | F-HLSL16B |
| Bore Diameter | 16mm |
