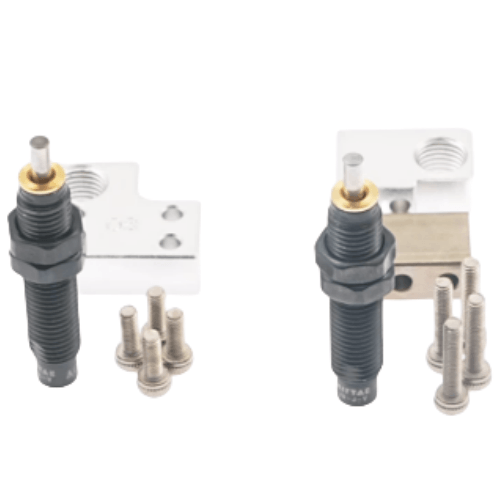

Airtac F-HLSL-B Front and Rear End Hydraulic Shock Absorber Complete Kit F-HLSL20B
AirTAC F-HLSL-B Series Hydraulic Shock Absorber Kit (F-HLSL20B)
- Model: F-HLSL20B (Complete Kit with Front/Rear Mounting)
- Type: Adjustable oil hydraulic damper with pre-attached locknuts
- Applicable cylinder bore: Ø20mm
- Max. absorbed energy: 0.25 N·m/cycle
- Stroke: 5mm ±1mm
- Max. impact speed: 0.8 m/s
- Buffer force adjustment: 6-stage via hex key (included)
- Installation torque: 5-7 N·m
- Operating temperature: -10℃ to 80℃
- Oil type: ISO VG15-32 hydraulic fluid (pre-filled)
- Body material: Carbon steel with chrome plating
- Seal material: HNBR with anti-extrusion rings
- Weight: 0.8kg (including mounting hardware)
- Dimensions: 88mm(L) × Ø25mm(body) × 45mm(mounting span)
- Mounting hole spacing: 45mm ±0.2mm
- Bore diameter for mounting: Ø6.5mm
Self-contained hydraulic damper engineered for precise kinetic energy absorption in reciprocating mechanisms. Features temperature-compensated viscosity control and anti-leakage piston design. Pre-lubricated for 50,000km service life under ISO cleanliness code 18/16/13. Includes corrosion-resistant spring washers and M6 stainless steel locknuts.
- Linear module end-stop cushioning
- Pneumatic cylinder rod-end protection
- CNC tool changer impact reduction
- Packaging machine gripper alignment systems
- Die-casting machine ejection mechanisms
Installation protocol:
Mount perpendicular to impact direction with 0.5-1mm pre-compression.
Perform 10-15 test strokes before load application. Re-torque after
500 cycles. Replace when oil seepage exceeds 0.1ml/10,000 cycles.
| Property | Property Value |
|---|---|
| sku | F-HLSL20B |
| Bore Diameter | <20mm> |
