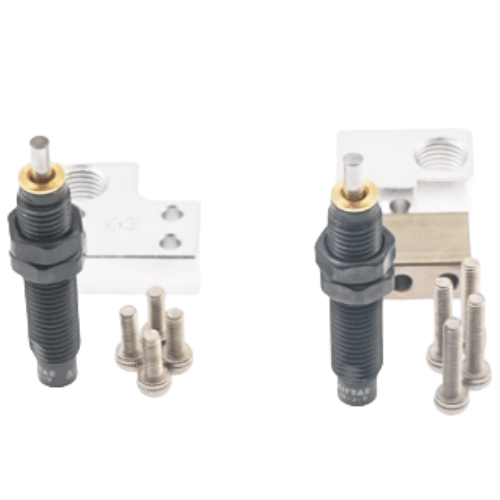

Airtac F-HLSL-B Front and Rear End Hydraulic Shock Absorber Complete Kit F-HLSL8B
AirTAC F-HLSL-B Hydraulic Shock Absorber with Front/Rear Mounting (F-HLSL8B Complete Package)
- Model: F-HLSL8B (Complete Pre-oiled Unit)
- Type: Double-acting adjustable hydraulic buffer
- Effective Weight Capacity: 0.6-5.5 kg
- Max. Absorbing Energy: 0.7 J
- Impact Velocity Range: 0.2-1.5 m/s
- Stroke Length: 8 mm ±1
- Operating Temp: -10℃ to +80℃
- Housing Material: Aluminum alloy (Al6063-T5)
- Rod Material: Chrome-plated steel (SCM435)
- Seal Type: HNBR seals with wear indicator
- Viscosity Grade: ISO VG68 hydraulic oil (pre-filled)
- Adjustment Type: 6-stage rotary damping control
- Mounting Thread: M10×1.25 front/rear
- Weight: 285g ±5% (including mounting hardware)
- Dimensions: 72mm(L) × 32mm(Ø) × 58mm(H) (Max projection)
- Cycle Life: 500,000 cycles @ 1 m/s impact
- Protection Rating: IP54 (standard seals)
Pre-lubricated compact shock absorber with dual mounting capability, featuring visual wear detection through translucent seal indicators. The progressive damping mechanism prevents hard collisions in repetitive motion systems. Includes corrosion-resistant zinc-nickel plating on threaded surfaces and anti-vibration locknuts.
- High-speed pick-and-place robot end effectors
- CNC tool changer impact absorption
- Packaging machine stopper mechanisms
- Automated conveyor diverters
- Semiconductor wafer handling arms
Installation Note:
Mount within 5° of vertical axis. Perform 10-15 test cycles before full operation.
Adjust damping via hex key (2mm) - clockwise increases resistance. Re-oil every 200k cycles.
- 2× M10 stainless steel crush washers
- 4× Vibration-damping nylon lock nuts
- 1× Alignment spacer kit (0.5/1.0/1.5mm)
- Oil port plug with PTFE seal
| Property | Property Value |
|---|---|
| sku | F-HLSL8B |
| Bore Diameter | <8mm> |
