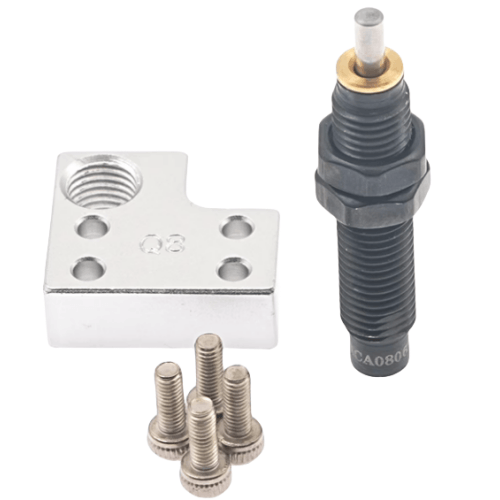

Airtac F-HLSL-BF Retracting End with Hydraulic Cushion Complete Assembly F-HLSL12BF
$36.05
Regular price
$43.55
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
F-HLSL12BF
Product type:
Tags:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
Category: Cylinder Accessories
Brand: AirTAC
Series: F-HLSL-BF Rear End Hydraulic Shock Absorber Complete Kit
Professional Description:
AirTAC F-HLSL-BF series represents a precision-engineered rear-mounted hydraulic cushioning solution for pneumatic cylinders, optimized for industrial automation systems requiring precision deceleration control. This complete assembly integrates a multi-stage buffering mechanism with adjustable oil viscosity compensation, ensuring smooth end-stroke energy absorption while minimizing piston rod rebound. Features include:
- Progressive damping force (5-15 N·m adjustable range)
- Compact T-slot mounting design compatible with ISO 15552 cylinder standards
- Temperature-resistant hydraulic fluid (-10°C to +80°C operational range)
- Hardened stainless steel impact rod with chromium-plated surface treatment
- Integrated buffer force indicator window for visual maintenance checks
- IP67 protection rating with fluorine rubber seals
Technical Specifications:
Max. cushioning capacity: 1.6 J/stroke
Operating pressure range: 0.1-1.0 MPa
Fluid viscosity grade: ISO VG 32 anticorrosive hydraulic oil
Impact velocity: ≤ 1.5 m/s
Meets ISO 6431 and VDMA 24562 standards for industrial cylinder accessories
Installation Guidelines:
Mount perpendicular to impact direction using included M5x12 flange screws.
Perform 10-15 trial strokes before full operation. Adjust damping force clockwise
to increase resistance (audible click per adjustment notch). Relubricate every
500,000 cycles using ISO VG32 oil.
AirTAC F-HLSL-BF Rear-Mounted Hydraulic Shock Absorber Kit F-HLSL12BF Technical Details
- Model Series: F-HLSL-BF (Back Flange Type)
- Specific Model: F-HLSL12BF
- Absorption Capacity: 0.25 N·m/stroke
- Max. Impact Velocity: 1.5 m/s
- Stroke Length: 12±1 mm
- Applicable Cylinder Bore: Ø12-25 mm
- Damping Force Adjustment: 5-stage rotary control (0.2-2.5 kN)
- Operating Temp Range: -10℃ to 80℃
- Body Material: Aluminum alloy ADC12 with hard anodizing
- Piston Rod: Chrome-plated steel S45C
- Seal Material: HNBR with PTFE wear ring
- Hydraulic Fluid: ISO VG32 shock absorber oil
- Mounting: Direct flange connection to cylinder rear
- Weight: 0.32 kg (with pre-filled oil)
- Dimensions: 78mm(L) × 24mm(W) × 24mm(H)
- Surface Treatment: Black electrophoretic coating
- Protection Class: IP67 (dust/water resistant)
High-precision adjustable hydraulic damper designed for pneumatic cylinder end cushioning. Features progressive damping characteristics through multi-stage orifice control and temperature-compensated viscosity stabilization. Includes pre-installed mounting hardware and leak-proof O-ring seals.
Typical Applications:
- High-cycle automation equipment (1,200+ operations/hour)
- Vertical load braking in material handling systems
- Precision positioning of robotic arm joints
- Impact reduction in stamping machine rams
- Vibration damping for optical inspection stages
Installation Guidelines:
Mount perpendicular to impact direction using included M5x12 flange screws.
Perform 10-15 trial strokes before full operation. Adjust damping force clockwise
to increase resistance (audible click per adjustment notch). Relubricate every
500,000 cycles using ISO VG32 oil.
| Property | Property Value |
|---|---|
| sku | F-HLSL12BF |
| Bore Diameter | 12mm |
