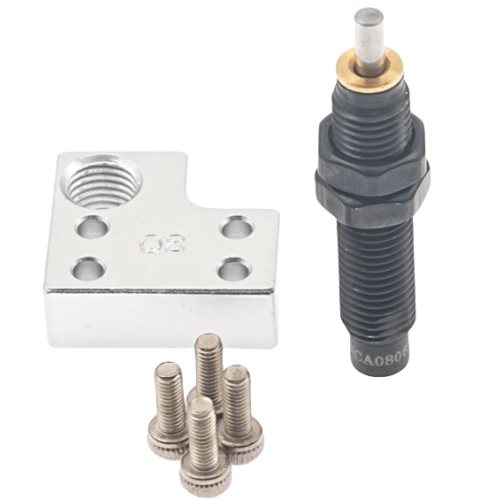

Airtac F-HLSL-BF Retracting End with Hydraulic Cushion Complete Assembly F-HLSL16BF
AirTAC F-HLSL-BF Series Rear-End Hydraulic Shock Absorber Kit (F-HLSL16BF)
- Model: F-HLSL16BF
- Type: Adjustable hydraulic buffer with built-in oil tank
- Buffer capacity: 0.25 N·m/stroke
- Effective stroke: 15 mm (adjustable ±2mm)
- Piston rod diameter: Φ16 mm
- Max. energy absorption: 12.5 J/cycle
- Max. impact speed: 1.5 m/s
- Oil viscosity: ISO VG68 (SAE 20W equivalent)
- Temperature range: -10℃ to 80℃
- Body material: Aluminum alloy (hard anodized)
- Seal material: HNBR with PTFE coating
- Mounting type: M10×1.5 threaded connection
- Weight: 0.68 kg ±3%
- Dimensions: 98mm(L) × 32mm(W) × 32mm(H)
- Protection rating: IP67 (dust/water resistant)
- Reaction force: 120-450 N (adjustable via needle valve)
High-precision hydraulic damper with integrated oil reservoir, engineered for heavy-duty industrial deceleration. Features temperature-compensated viscosity control and dual-stage buffering mechanism (initial impact absorption + final position damping). Includes anti-rotation guide pins and magnetic sensor-ready design for position feedback.
- Robotic arm end-effector stabilization
- CNC machine tool carriage deceleration
- Automated packaging line pusher mechanisms
- Die-casting machine ejection systems
- Elevator car emergency braking buffers
Installation protocol:
Mount with impact direction aligned to buffer axis (±2° tolerance). Perform 5-10 test strokes before full operation.
Maintain oil level between inspection window's MAX/MIN marks. Re-lubricate every 500,000 cycles using ISO VG68 shock absorber oil.
| Property | Property Value |
|---|---|
| sku | F-HLSL16BF |
| Bore Diameter | 16mm |
