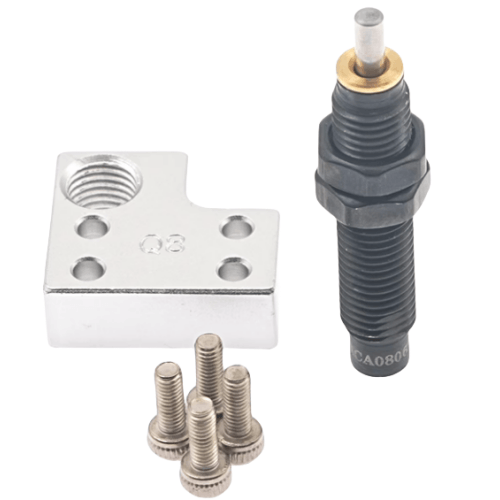

Airtac F-HLSL-BF Retracting End with Hydraulic Cushion Complete Assembly F-HLSL20BF
$47.68
Regular price
$55.18
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
F-HLSL20BF
Product type:
Tags:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
Category: Cylinder Accessories
Brand: AirTAC
Series: F-HLSL-BF Rear End Hydraulic Shock Absorber Complete Kit
Professional Description:
AirTAC F-HLSL-BF series represents a precision-engineered rear-mounted hydraulic cushioning solution for pneumatic cylinders, optimized for industrial automation systems requiring precision deceleration control. This complete assembly integrates a multi-stage buffering mechanism with adjustable oil viscosity compensation, ensuring smooth end-stroke energy absorption while minimizing piston rod rebound. Features include:
- Progressive damping force (5-15 N·m adjustable range)
- Compact T-slot mounting design compatible with ISO 15552 cylinder standards
- Temperature-resistant hydraulic fluid (-10°C to +80°C operational range)
- Hardened stainless steel impact rod with chromium-plated surface treatment
- Integrated buffer force indicator window for visual maintenance checks
- IP67 protection rating with fluorine rubber seals
Technical Specifications:
Max. cushioning capacity: 1.6 J/stroke
Operating pressure range: 0.1-1.0 MPa
Fluid viscosity grade: ISO VG 32 anticorrosive hydraulic oil
Impact velocity: ≤ 1.5 m/s
Meets ISO 6431 and VDMA 24562 standards for industrial cylinder accessories
Installation note:
Requires perpendicular mounting to impact direction. For horizontal installations,
use support bracket AMB-20 (sold separately). Perform 10 trial strokes before
operation to distribute oil evenly. Re-tighten mounting bolts after 50 hours of initial use.
AirTAC F-HLSL-BF Series Hydraulic Shock Absorber - F-HLSL20BF
- Model: F-HLSL20BF (Rear End Mounting Type)
- Type: Pre-assembled hydraulic buffer with built-in check valve
- Maximum impact energy: 6.5 Joules
- Maximum impact velocity: 2.0 m/s
- Maximum allowable mass: 160 kg
- Adjustment range: 3 adjustable stages (via rotating knob)
- Operating temperature: -10℃ to 60℃
- Fluid type: ISO VG32 hydraulic oil (pre-filled)
- Housing material: SCM435 alloy steel (quenched)
- Rod material: Chromium-molybdenum steel (hard chrome plated)
- Weight: 850g ±2% (including pre-mounted accessories)
- Dimensions: 87mm(L) × 34mm(W) × 34mm(H)
- Mounting thread: M20×1.5 (male thread)
- Surface treatment: Black oxide coating (Fe/Of)
- Recovery time: ≤0.8 seconds after full compression
- Protection rating: IP54 (standard dust/water resistance)
High-precision industrial damper with temperature-compensated viscosity control, featuring triple-stage adjustable damping force (soft/medium/hard modes). The integrated check valve prevents oil cavitation during rapid cycling. Maintenance-free design with 500,000-cycle lifespan under rated load.
Typical Applications:
- Robotic arm end-effector vibration suppression
- CNC machine tool automatic door mechanisms
- Packaging machine vertical plunger systems
- Automated warehouse stacker cranes
- Die-casting machine ejection unit buffering
Installation note:
Requires perpendicular mounting to impact direction. For horizontal installations,
use support bracket AMB-20 (sold separately). Perform 10 trial strokes before
operation to distribute oil evenly. Re-tighten mounting bolts after 50 hours of initial use.
| Property | Property Value |
|---|---|
| sku | F-HLSL20BF |
| Bore Diameter | <20mm> |
