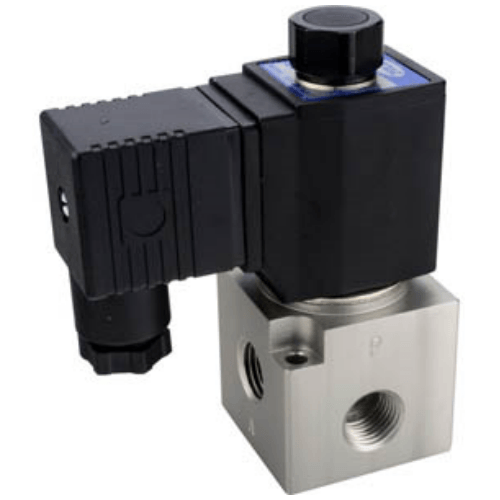

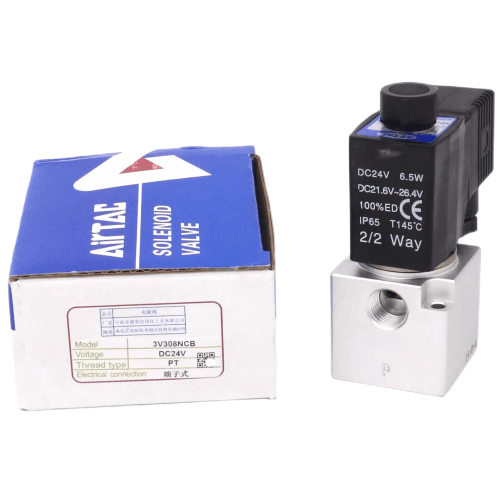

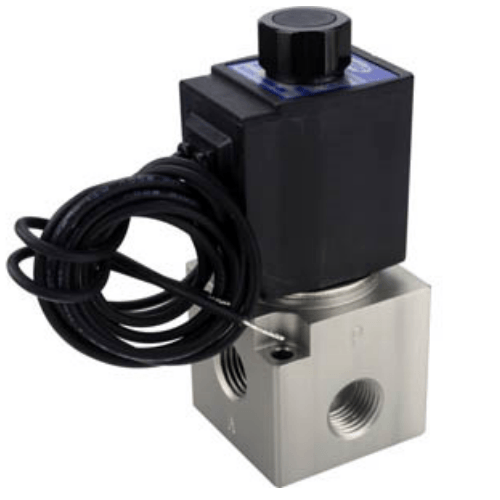

Airtac 3V3 Solenoid Valve 3V308NCAI
2、Normally Closed (NC) and Normally Open (NO) configurations available;
3、Co-axial poppet structure ensures superior sealing performance and high flow capacity;
4、Maintenance-free operation without lubrication required;
5、Integrated manual override for simplified installation and commissioning;
6、Multiple standard voltage options compliant with international specifications.
Category: Solenoid Valves , Brand: Airtac , Series: 3V3
AirTAC 3V308NCAI Solenoid Valve Technical Specifications
- Model: 3V308NCAI
- Valve type: 3-position, 5-way (3V3 series) with center exhaust
- Operation mode: Double solenoid with spring return
- Port size: PT3/8 (G3/8 optional)
- Effective area: 28mm² (port A/B), 45mm² (port P)
- Operating pressure range: 0.1–1.0 MPa
- Max flow rate: 1200 NL/min (ANR)
- Voltage variants: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Coil insulation class: Class F (155°C)
- Duty cycle: 100% ED (continuous operation capable)
- Response time: ≤25ms (energize), ≤35ms (de-energize)
- Seal material: HNBR (Hydrogenated Nitrile) for high temperature resistance
- Ambient temperature: -5℃ to 80℃ (with intermittent peaks to 100℃)
- Protection rating: IP67 (dust-tight and protected against temporary immersion)
- Weight: 650g ±5% (with coil)
- Dimensions: 89mm(L) × 45mm(W) × 76mm(H) (including fittings)
- Port thread depth: 12mm (all ports)
High-flow directional control valve featuring dual redundant seals and surge protection circuitry. Optimized for multi-cylinder sequencing with its 5-way configuration, supporting both pressure and exhaust center positions. The aluminum alloy body with hard anodizing ensures corrosion resistance in humid environments. Requires 5μm filtration (ISO 8573-1:2010 Class 3-4-2) with oil mist lubrication (ISO VG32 recommended).
- Automated assembly line clamping systems
- Plastic injection molding machine ejectors
- Bottle blowing machine air distribution
- CNC tool changer mechanisms
- Automotive paint shop pneumatic actuators
Installation guidelines:
Mount with vibration-damping brackets in high-shock environments.
Maintain minimum 15mm clearance from adjacent components for heat dissipation.
Use M5x0.8 mounting screws with 0.6-0.8Nm torque. Perform manual override test
quarterly using integrated override button.
Critical note:
Not compatible with phosphate ester fluids. When using in vacuum applications,
install downstream check valve to prevent backflow contamination.
| Property | Property Value |
|---|---|
| sku | 3V308NCAI |
| Position | 3-Port 2-Position |
| Initial Position | Normally Closed |
| Port Size | PT1/4 |
| Standard Voltage | AC220V |
