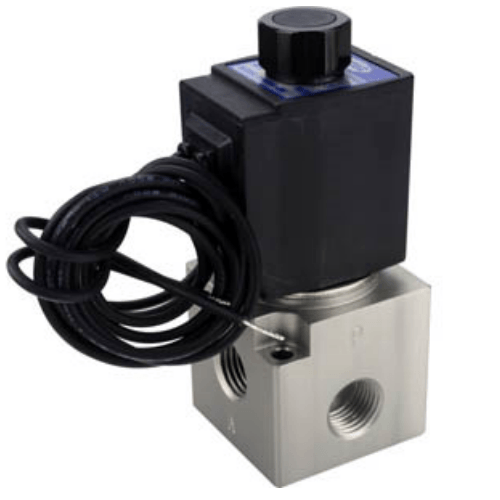

Airtac 3V3 Solenoid Valve 3V308NCF
The AirTAC Airtac 3V3 Solenoid Valve 3V308NCF is a genuine 3-port 2-position (3/2) solenoid valve with 1/4 in ports. It either feeds its outlet or vents it to exhaust, which is what makes it the valve for single-acting cylinders, on/off air blow, clamping, vacuum switching and pilot duty.
- Valve type3/2-way (3-port, 2-position)
- Initial stateNormally closed
- Port size1/4 in
- Coil voltageDC12V
- Electrical entryDIN plug (DIN socket type)
- Flow (Cv)0.62
- Series3V3
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the Airtac 3V3 Solenoid Valve 3V308NCF

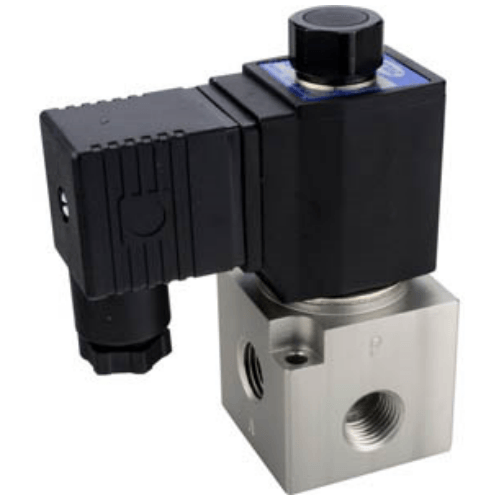

The 3V308NCF is a normally closed 3/2 solenoid valve on AirTAC's largest three-port body, with PT-threaded 1/4 inch ports and a DIN plug connection. Its AC24V coil draws 10 VA. De-energised, the spring return blocks the supply and dumps the outlet to exhaust, so downstream holds no air until the coil is powered - the safe default for clamping and blow circuits.
Inside, a direct-acting coaxial shut-off poppet does the switching, giving good sealing and high flow: Cv 0.62, the best figure in the whole 3V range and roughly six times a base-mounted 3V2M. The body is also rated for vacuum down to -102.2 kPa.
Airtac 3V3 Solenoid Valve 3V308NCF Technical Specifications
| Model | Airtac 3V3 Solenoid Valve 3V308NCF |
|---|---|
| Series | 3V3 |
| Valve type | 3/2-way (3-port, 2-position) |
| Function | Direct-acting, single solenoid, spring return |
| Initial state | Normally closed |
| Port size | 1/4 in |
| Thread | PT |
| Coil voltage | DC12V |
|---|---|
| Electrical entry | DIN plug (DIN socket type) |
| Coil power | 6.5 W |
| Operating pressure | 0-0.8 MPa (0-114 psi) |
| Vacuum service | Rated -102.2 kPa to 0.1 MPa |
| Flow coefficient | Cv 0.62 |
| Temperature | -20 to 70 C |
| Construction | Coaxial shut-off (poppet), direct-acting, spring return |
| Protection | IP65 (DIN 40050) |
| Medium | Air, filtered by a 40 µm or finer element. Lubrication not required. |
Figures follow the official AirTAC 3V3 catalogue. Confirm coil voltage and thread (PT / NPT / G) against the product label before wiring.
Model Code: Airtac 3V3 Solenoid Valve 3V308NCF
| 3V3 | Body — sets the flow, the coil power and whether vacuum is rated. |
|---|---|
| 1/4 in | Port size. M5, 06 = 1/8 in, 08 = 1/4 in, 10 = 3/8 in. |
| NC | Normally closed: no air at the outlet until the coil is energised. |
| DC12V | Coil voltage. A = AC220V, B = DC24V, C = AC110V, E = AC24V, F = DC12V. |
| — | Electrical entry: I = flying lead, otherwise a DIN plug. |
| PT | Port thread. PT ships from stock; G and NPT are available to order. |
What a 3/2 Valve Does
A 3/2 valve has three ports — supply, outlet and exhaust — and two states. It either feeds the outlet or vents it to exhaust, and that is the whole job.
That makes it the right valve for a single-acting (spring-return) cylinder, on/off air blow, a clamp, switching a vacuum generator or suction cup, and piloting a larger valve.
It cannot run a double-acting cylinder. A double-acting cylinder needs air alternately on two sides, which takes a 5-port valve — the AirTAC 4V series.
Where the Airtac 3V3 Solenoid Valve 3V308NCF Is Used
Fixture clamp cylinder
A spring-return clamp on a machining fixture grips only while the valve feeds it; drop the AC24V coil and the outlet dumps to exhaust, releasing the part.
Bottle-cap blow-off
Before labelling, a short coil pulse opens the full Cv 0.62 cross-section to blast rinse water off bottle caps on a filling line.
Glass-sheet vacuum cup
A lab lifter switching vacuum to a single glass-handling cup stays within the valve's negative-pressure rating of -102.2 kPa to 0.1 MPa.
Is the Airtac 3V3 Solenoid Valve 3V308NCF the Right Part?
3V3 is the largest and highest-flow 3-port body AirTAC makes, so every alternative is a step down. Choose 3V2 (1/8 or 1/4 inch, Cv 0.18-0.19, also vacuum rated) when Cv 0.62 is more than the duty needs, 3V2M (Cv 0.1) when a dense multi-station manifold matters more than flow, or 3V1 for the smallest low-power jobs at 3.0 W on DC24V. Settle five points before ordering: port and thread (PT1/4 is the standard on this family; G and NPT are catalogue options), normally closed or open, coil voltage, electrical entry - a DIN plug on this code - and any vacuum involvement. Double-acting cylinders need five ports; point those jobs at the AirTAC 4V series.
Confirm before you order
- ✓ Port size and thread (PT from stock; G / NPT to order)
- ✓ Initial state — NC or NO, ordered up front
- ✓ Coil voltage matches your controller output
- ✓ Electrical entry — DIN plug or flying lead
- ✓ Single valve, bare base, or complete assembly
- ✓ Single-acting duty, not double-acting
Installation & Wiring Notes
- check Use clean air filtered to 40µm or finer.
- check Stay within 0-0.8 MPa (0-114 psi) operating pressure.
- check Match the coil voltage to your controller output.
- check Use the manual override to test before powering up.
- check Leave the exhaust port clear, or fit a silencer.
- check Wiring by qualified personnel, per AirTAC documentation.
Airtac 3V3 Solenoid Valve 3V308NCF FAQ
Flow coefficient Cv 0.62; operating pressure 0-0.8 MPa (0-114 psi); vacuum capability -102.2 kPa to 0.1 MPa; temperature -20 to 70 C; coil power 10 VA on AC and 6.5 W on DC across the 3V3 family; protection IP65 (DIN 40050). The medium is air filtered to 40 um or finer, and lubrication is not required.
Normally closed (this 3V308NCF) leaves the outlet vented whenever the coil is off and feeds it when powered - the default for clamps, kickers and blow pulses, because a power cut releases the load. Normally open is the reverse, for purge or safety-dump lines. The state is set by the order code: NC here, NO on the equivalent NO model.
