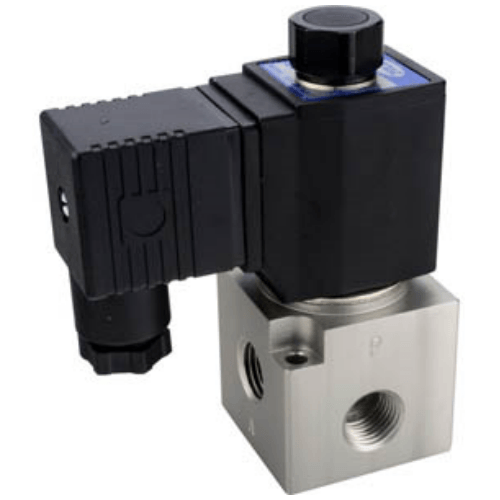

Airtac 3V3 Solenoid Valve 3V308NCFI
The AirTAC Airtac 3V3 Solenoid Valve 3V308NCFI is a genuine 3-port 2-position (3/2) solenoid valve with 1/4 in ports. It either feeds its outlet or vents it to exhaust, which is what makes it the valve for single-acting cylinders, on/off air blow, clamping, vacuum switching and pilot duty.
- Valve type3/2-way (3-port, 2-position)
- Initial stateNormally closed
- Port size1/4 in
- Coil voltageDC12V
- Electrical entryFlying lead (lead-out wire type)
- Flow (Cv)0.62
- Series3V3
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the Airtac 3V3 Solenoid Valve 3V308NCFI
Code 3V308NCFI spells out a specific wiring choice: the normally closed, 1/4 inch, PT-threaded 3/2 valve with its AC24V coil terminated in a flying lead rather than a DIN socket. Panels that gland wires straight onto terminals can connect without sourcing an extra plug.
Functionally it is the direct-acting, spring-return poppet body: Cv 0.62 of flow headroom - about six times a manifold-mounted 3V2M - plus IP65 sealing and vacuum capability to -102.2 kPa. With the coil off the outlet sits on exhaust; energising opens supply to the line.
Airtac 3V3 Solenoid Valve 3V308NCFI Technical Specifications
| Model | Airtac 3V3 Solenoid Valve 3V308NCFI |
|---|---|
| Series | 3V3 |
| Valve type | 3/2-way (3-port, 2-position) |
| Function | Direct-acting, single solenoid, spring return |
| Initial state | Normally closed |
| Port size | 1/4 in |
| Thread | PT |
| Coil voltage | DC12V |
|---|---|
| Electrical entry | Flying lead (lead-out wire type) |
| Coil power | 6.5 W |
| Operating pressure | 0-0.8 MPa (0-114 psi) |
| Vacuum service | Rated -102.2 kPa to 0.1 MPa |
| Flow coefficient | Cv 0.62 |
| Temperature | -20 to 70 C |
| Construction | Coaxial shut-off (poppet), direct-acting, spring return |
| Protection | IP65 (DIN 40050) |
| Medium | Air, filtered by a 40 µm or finer element. Lubrication not required. |
Figures follow the official AirTAC 3V3 catalogue. Confirm coil voltage and thread (PT / NPT / G) against the product label before wiring.
Model Code: Airtac 3V3 Solenoid Valve 3V308NCFI
| 3V3 | Body — sets the flow, the coil power and whether vacuum is rated. |
|---|---|
| 1/4 in | Port size. M5, 06 = 1/8 in, 08 = 1/4 in, 10 = 3/8 in. |
| NC | Normally closed: no air at the outlet until the coil is energised. |
| DC12V | Coil voltage. A = AC220V, B = DC24V, C = AC110V, E = AC24V, F = DC12V. |
| I | Electrical entry: I = flying lead, otherwise a DIN plug. |
| PT | Port thread. PT ships from stock; G and NPT are available to order. |
What a 3/2 Valve Does
A 3/2 valve has three ports — supply, outlet and exhaust — and two states. It either feeds the outlet or vents it to exhaust, and that is the whole job.
That makes it the right valve for a single-acting (spring-return) cylinder, on/off air blow, a clamp, switching a vacuum generator or suction cup, and piloting a larger valve.
It cannot run a double-acting cylinder. A double-acting cylinder needs air alternately on two sides, which takes a 5-port valve — the AirTAC 4V series.
Where the Airtac 3V3 Solenoid Valve 3V308NCFI Is Used
Field retrofit wiring
On a retrofit job the pre-wired lead-out splices straight into an AC24V control loom, so no DIN socket or plug has to be hunted down separately.
Sorting-chute kicker
The moment the coil de-energises, a small single-acting kicker cylinder vents and snaps back, flicking a mis-sized pack off a high-rate sorting chute.
Clamp manifold branch
One 1/4 inch branch feeding a power clamp on a weld-cell fixture, where Cv 0.62 keeps fill time short even on long air lines.
Is the Airtac 3V3 Solenoid Valve 3V308NCFI the Right Part?
Nothing in the 3V family out-flows the 3V3, so the sizing question is always downward. Step to 3V2 (Cv 0.18-0.19, still vacuum capable) for lighter 1/8 inch duties, to 3V2M (Cv 0.1) where packing many stations onto one manifold beats raw flow, or to 3V1 when the lowest coil draw wins - 3.0 W at DC24V. Confirm on the order: PT1/4 as the standard thread with G and NPT available as options, NC or NO, the coil voltage, DIN plug versus the flying lead this code specifies, and whether vacuum is part of the circuit. For a double-acting cylinder, switch to the 5-port AirTAC 4V range.
Confirm before you order
- ✓ Port size and thread (PT from stock; G / NPT to order)
- ✓ Initial state — NC or NO, ordered up front
- ✓ Coil voltage matches your controller output
- ✓ Electrical entry — DIN plug or flying lead
- ✓ Single valve, bare base, or complete assembly
- ✓ Single-acting duty, not double-acting
Installation & Wiring Notes
- check Use clean air filtered to 40µm or finer.
- check Stay within 0-0.8 MPa (0-114 psi) operating pressure.
- check Match the coil voltage to your controller output.
- check Use the manual override to test before powering up.
- check Leave the exhaust port clear, or fit a silencer.
- check Wiring by qualified personnel, per AirTAC documentation.
Airtac 3V3 Solenoid Valve 3V308NCFI FAQ
Cv 0.62 flow coefficient; 0-0.8 MPa working pressure (0-114 psi); rated from -102.2 kPa to 0.1 MPa for vacuum service; usable from -20 to 70 C; 10 VA coil draw on AC versions, 6.5 W on DC; IP65 to DIN 40050. Air supply should be filtered to 40 um or better, with no lubrication needed.
It has three ports - supply, outlet, exhaust - and two states, so it either feeds or vents one line. That covers single-acting spring-return cylinders, blow nozzles, clamps, vacuum switching and piloting a larger valve. It cannot drive a double-acting cylinder; that needs five ports, i.e. the AirTAC 4V series.
Authorized Export Seller
Genuine AirTAC parts produced by the AirTAC factory.
1-Year Warranty
Covers non-human-caused product damage.
Fast Dispatch
Standard models are processed and dispatched in 3-5 business days.
Fast Reply
Most inquiries answered within 7-8 hours.
Related AirTAC 3V Valves
Request a Quote for Airtac 3V3 Solenoid Valve 3V308NCFI
Send us the quantity, coil voltage and destination. We confirm price, stock and lead time — usually within 7-8 hours.
