This model is discontinued
AirTAC has phased out the MALJ series. You can still order this code here: we ship the drop-in replacement B01-MBLJ25X125-30S, with the same bore, stroke, output force, port and mounting, so it fits the same application. The MBLJ replacement upgrades to a riveted rolling-packed body and CMSG / DMSG / EMSG sensors (the MAL used CS1-M / DS1-M).

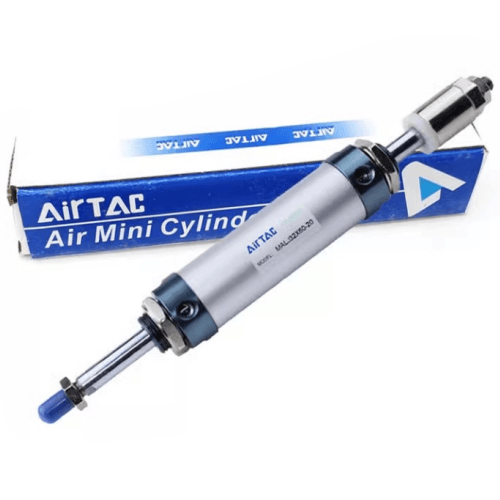

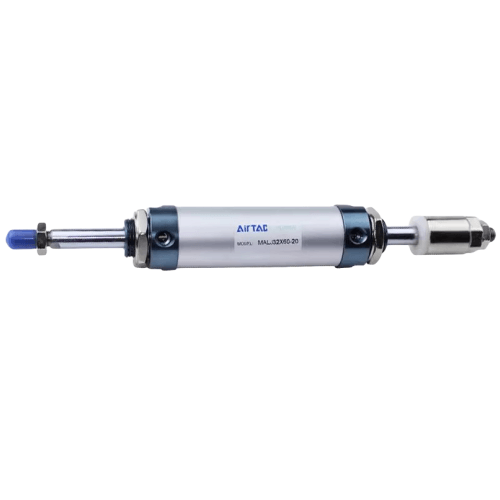

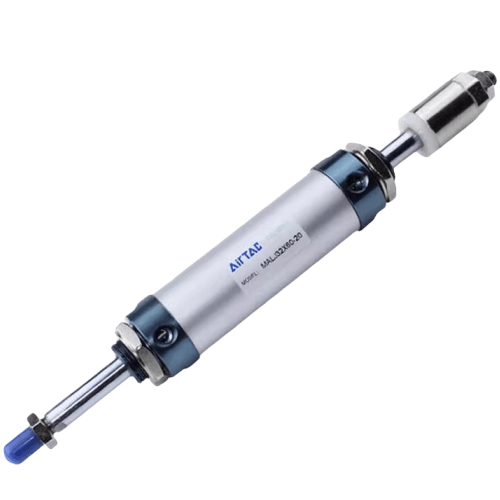

Airtac B01-MALJ Special Application Cylinder B01-MALJ25X125-30S
The AirTAC Airtac B01-MALJ Special Application Cylinder B01-MALJ25X125-30S is a double-acting aluminum mini cylinder with a rear adjustable-stroke stopper: you can trim up to 30 mm, giving a usable end-position window from 95 to 125 mm. This model is discontinued — the drop-in replacement is the B01-MBLJ25X125-30S.
- BoreØ25 mm
- Stroke125 mm
- Adjust window95–125 mm
- Port sizeG1/8
- Rod threadM10×1.25
- StatusDiscontinued → B01-MBLJ25X125-30S
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the Airtac B01-MALJ Special Application Cylinder B01-MALJ25X125-30S
The B01-MALJ25X125-30S is a discontinued double-acting mini cylinder. The B01- prefix marks it as an application-dedicated (customer-specified) variant, mechanically identical to the base MALJ25X125-30S. It delivers 245 N push and 206 N pull at 0.5 MPa. The rear screw lets you trim up to 30 mm, giving a usable 95-125 mm stroke window. The exact drop-in replacement is the MBLJ25X125-30S.
This 25 mm bore uses a G1/8 port and a fixed rubber bumper. The adjuster is a travel stop, not a lock, so it will not hold a load without live air. Upgrading to the MBLJ changes the body from threaded covers to a riveted rolling-packed design, and the -S magnet switches from CS1-M/DS1-M to CMSG/DMSG/EMSG sensors.
Airtac B01-MALJ Special Application Cylinder B01-MALJ25X125-30S Technical Specifications
| Model | Airtac B01-MALJ Special Application Cylinder B01-MALJ25X125-30S |
|---|---|
| Series | MALJ adjustable-stroke mini cylinder (discontinued) |
| Replacement | B01-MBLJ25X125-30S |
| Bore size | Ø25 mm |
| Stroke | 125 mm |
| Adjustable window | 95 – 125 mm |
| Acting type | Double acting, adjustable stroke |
| Port size | G1/8 |
| Rod thread | M10×1.25 |
| Fluid | Air (filtered by 40µm element) |
|---|---|
| Operating pressure | 0.1 – 1.0 MPa |
| Proof pressure | 1.5 MPa |
| Temperature | -20 to +70 °C |
| Speed range | 30 – 800 mm/s |
| Cushion | Fixed rubber bumper |
| Max standard stroke | Up to 300 mm |
The rear adjuster is a travel stop, not a lock — it sets the end position but does not hold the load without live air. No back-cover code and no SDB on adjustable-stroke. The B01-MBLJ25X125-30S carries the same ratings.
Theoretical Output Force (Ø25mm)
| Pressure | Push force | Pull force |
|---|---|---|
| 0.5 MPa | 245 N | 206 N |
| 0.7 MPa | 344 N | — |
| Max (@1.0 MPa) | 50 kgf | |
Single-rod force, same as a standard MAL of this bore. The B01-MBLJ25X125-30S matches these values.
Model Code: Airtac B01-MALJ Special Application Cylinder B01-MALJ25X125-30S
| MALJ | Adjustable-stroke aluminum mini cylinder, double acting (discontinued). |
|---|---|
| 25 | Bore size in mm (20/25/32/40). |
| ×125 | Nominal stroke length in mm. |
| -30 | Adjustable amount: trim the end to a 95–125 mm window. |
| S | Optional magnet for a CS1-M / DS1-M sensor (MBLJ uses CMSG/DMSG/EMSG). |
Replacement: MALJ → MBLJ. No back-cover (CA/U/CM) and no SDB. Mounting: FA / LB.
Where the Airtac B01-MALJ Special Application Cylinder B01-MALJ25X125-30S Is Used
PCB Depaneling Saw
Dials the 95-125 mm blade plunge depth precisely. The 245 N push force drives the cut while the rear stop prevents over-travel into the fixture.
Dispenser Valve Height
Fine-tunes the nozzle height on an adhesive potting line. The 30 mm rear trim adjusts the drop distance without machining new brackets.
Leather Skiving Press
Sets the contact depth for a edge-shaving blade. The fixed rubber bumper absorbs the 206 N pull impact at the end of each retract cycle.
Replacing the Airtac B01-MALJ Special Application Cylinder B01-MALJ25X125-30S with B01-MBLJ25X125-30S
To replace this discontinued B01-MALJ25X125-30S, order the MBLJ25X125-30S. Confirm the 25 mm bore, 125 mm stroke, 30 mm adjust code, G1/8 PT port, and FA/LB mounting (no back cover or SDB). The -S magnet requires CMSG/DMSG/EMSG switches on the new body. If you need less force, step down to the 20 mm bore (157 N push at 0.5 MPa). If you need more, step up to the 32 mm bore (402 N push). Remember the adjuster sets the end position but does not hold load without air. At 125 mm stroke, minimize side-load to avoid rod bending.
Upgrade checklist
- ✓ Order the B01-MBLJ25X125-30S (same bore/stroke/adjust)
- ✓ Same 95–125 mm adjustable window
- ✓ Adjuster is a stop, not a lock
- ✓ No back cover / SDB — plan an FA/LB mount
- ✓ Sensor: swap CS1-M/DS1-M → CMSG/DMSG/EMSG
Installation & Maintenance Notes
- check Use clean air filtered to 40µm or finer.
- check Keep within 0.1 – 1.0 MPa operating pressure.
- check The rear adjuster sets the end position — it is not a load lock.
- check No back-cover / SDB on adjustable-stroke — use FA / LB.
- check Front/rear covers are threaded — not for field disassembly.
- check For new builds, specify the B01-MBLJ25X125-30S instead of this discontinued model.
Airtac B01-MALJ Special Application Cylinder B01-MALJ25X125-30S FAQ
Yes, it is discontinued. The exact drop-in replacement is the MBLJ25X125-30S, matching the 25 mm bore, 125 mm stroke, 30 mm adjust code, and G1/8 port. The B01- prefix only denotes an application-dedicated variant; mechanically it is identical to the base MALJ. The MBLJ upgrades the body to a riveted rolling-packed design and uses CMSG/DMSG/EMSG sensors for the magnet.
The full figure set is 245 N push and 206 N pull at 0.5 MPa, 343 N push at 0.7 MPa, and a maximum of 50 kgf at 1.0 MPa. The 30 mm adjust code creates a usable stroke window of 95-125 mm. The rear adjuster acts as a travel stop only and does not lock the load without live air pressure.
