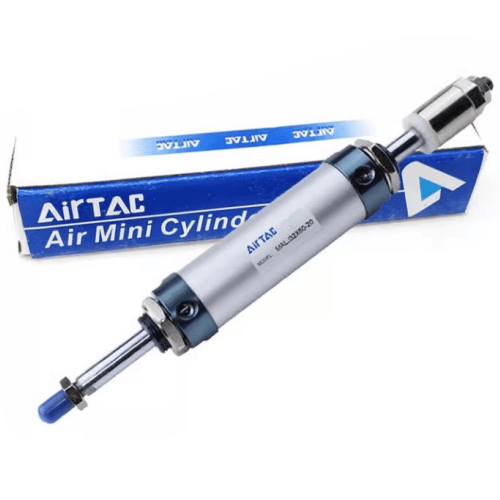

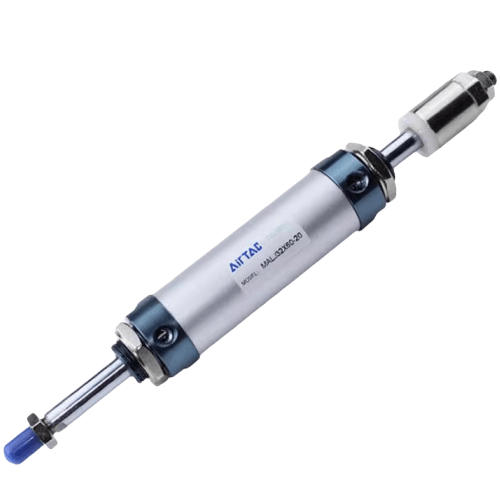

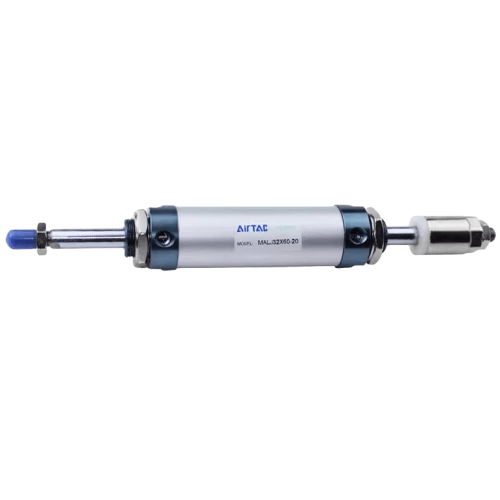

Airtac B01-MALJ Special Application Cylinder B01-MALJ25X75-30S
AirTAC B01-MALJ25X75-30S Special Purpose Cylinder Specifications
- Series: MALJ Compact Cylinder
- Full model: B01-MALJ25X75-30S
- Bore size: 25mm
- Stroke: 75mm
- Operating pressure: 0.05–1.0 MPa
- Operating temperature: -20℃ to 80℃
- Cushioning type: Rubber buffer (both ends)
- Mounting type: Basic type (Standard MF1)
- Port size: M5x0.8 (Dual Rc1/8 available on request)
- Piston speed: 50–800 mm/s
- Seal material: NBR (Nitrile) with wear-resistant ring
- Rod material: Hard chrome-plated steel
- Tube material: Aluminum alloy (anodized)
- Weight: 0.65 kg ±3%
- Dimensions:
- Extended length: 165mm
- Retracted length: 90mm
- Body width: 32mm
- Mounting hole spacing: 20mm (vertical) × 15mm (horizontal)
- Protection class: IP54 (standard), IP67 (optional)
High-precision compact cylinder with space-saving design, featuring integrated mounting grooves and anti-rotation guide mechanism. The 30S variant includes a magnetic piston for position sensing compatibility. Optimized for high-cycle applications with 5 million cycle lifespan under normal conditions. Requires ISO 8573-1:2010 Class 3-4-3 compressed air.
- PCB handling robots in electronics assembly
- Precision clamping in CNC tool changers
- Valve actuation in food packaging lines
- Medical device positioning systems
- Automated door mechanisms in cleanrooms
Installation guidance:
Lubricate with ISO VG32 hydraulic oil before initial use.
Maintain 0.5mm minimum clearance between magnetic sensor and cylinder body.
Avoid side loads exceeding 15N for optimal rod seal performance.
| Property | Property Value |
|---|---|
| sku | B01-MALJ25X75-30S |
