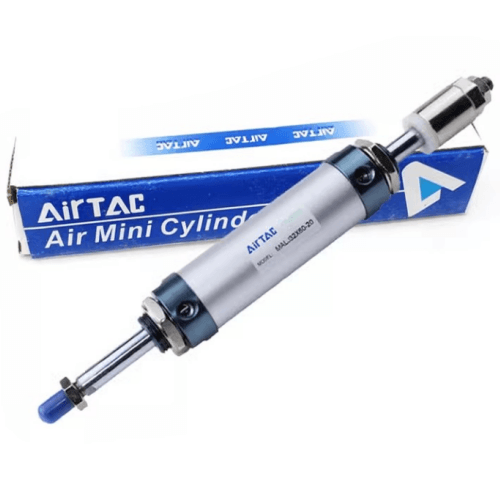

Airtac B01-MALJ Special Application Cylinder B01-MALJ32X100-50S
AirTAC B01-MALJ32X100-50S Special Purpose Cylinder Specifications
- Model: B01-MALJ32X100-50S
- Series: MALJ Compact Line
- Bore size: Ø32 mm (±0.1mm manufacturing tolerance)
- Stroke: 100 mm (adjustable cushioning)
- Operating pressure: 0.05-1.0 MPa
- Temperature range: -20℃ to 80℃
- Piston speed: 50-700 mm/s (lubricated)
- Cushioning type: Adjustable rubber buffer
- Mounting style: Front flange (ISO 15552 compatible)
- Rod end type: Female thread M12x1.25
- Port size: G1/8 (BSPP thread)
- Seal material: NBR (nitrile) standard
- Body material: Anodized aluminum alloy
- Weight: 1.28 kg (without accessories)
- Dimensions: 200mm(L) × 52mm(W) × 52mm(H)
- ISO certification: 6431, VDMA 24562
A space-optimized pneumatic cylinder featuring dual anti-rotation guide rods for enhanced lateral load capacity. Precision-machined piston rod with hard chrome plating (3-5μm thickness) ensures wear resistance. Integrated magnetic piston (D-M9N sensor compatible) enables position feedback. Requires ISO VG32 hydraulic oil lubrication if used in high-cycle applications (>1 million cycles).
- Cartesian robot Z-axis actuation
- Pharmaceutical blister packaging machines
- Automotive welding fixture clamping
- PCB depaneling equipment pushers
- Beverage canning line stopper mechanisms
Maintenance tip:
Apply 0.3-0.5g of lithium soap-based grease (ISO-LB grade) every 500km
stroke distance. Avoid side load exceeding 15% of maximum thrust capacity.
| Property | Property Value |
|---|---|
| sku | B01-MALJ32X100-50S |
