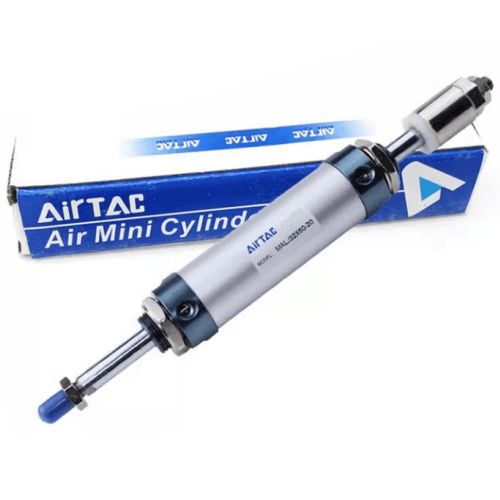

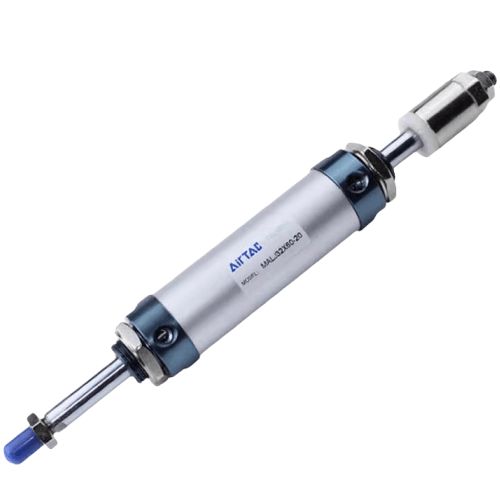

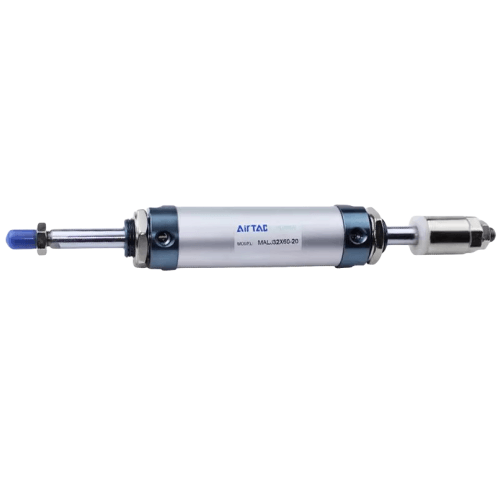

Airtac B01-MALJ Special Application Cylinder B01-MALJ40X125-30S
AirTAC B01-MALJ40X125-30S Special Purpose Cylinder Specifications
- Model: B01-MALJ40X125-30S
- Bore size: 40mm
- Stroke: 125mm
- Mounting type: 30S (Front flange with integrated guide rails)
- Operating pressure: 0.15–1.0 MPa
- Cushioning: Adjustable pneumatic cushion (both ends)
- Piston rod material: Chrome-plated stainless steel (SUS304)
- Cylinder tube: Hard anodized aluminum alloy
- Seal material: Nitrile rubber (NBR) with wear-resistant ring
- Ambient temperature: -20℃ to 80℃
- Port size: M5x0.8 (standard) or NPT1/8 (optional)
- Weight: 2.5kg ±3% (excluding accessories)
- Dimensions: 225mm(L) × 80mm(W) × 80mm(H)
- Repeat accuracy: ±0.1mm (under ISO 6432 standard)
- Max lateral load: 35N (at piston rod extension)
- Protection class: IP54 (standard sealing)
A precision-guided cylinder with anti-rotation mechanism, engineered for high lateral load applications requiring strict linear alignment. Features dual-guide rail stabilization for enhanced moment resistance and optional magnetic piston for position sensing. Pre-lubricated for maintenance-free operation up to 3,000km stroke distance.
- Precision clamping fixtures in CNC machining centers
- Vertical lifting mechanisms in automated warehouses
- Glass panel handling systems with guided alignment
- Packaging machine sealing head actuators
- Automotive welding jig positioning
Installation guidelines:
Requires precise parallelism adjustment (≤0.1mm/m) between guide rails and driven load.
Use locknuts with 1.2-1.5Nm torque on mounting bolts. Lubricate rod end weekly in high-cycle
applications (≥500 cycles/day). Avoid side impact during stroke end positioning.
| Property | Property Value |
|---|---|
| sku | B01-MALJ40X125-30S |
