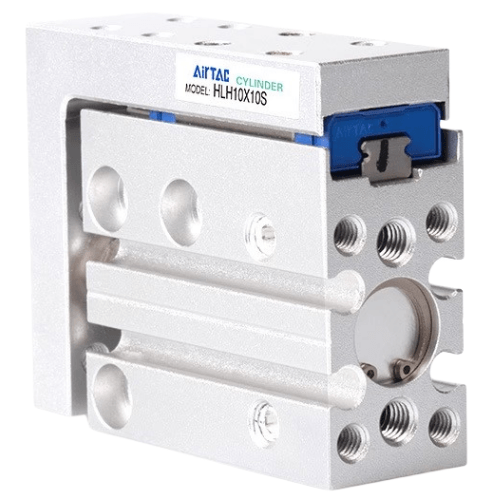

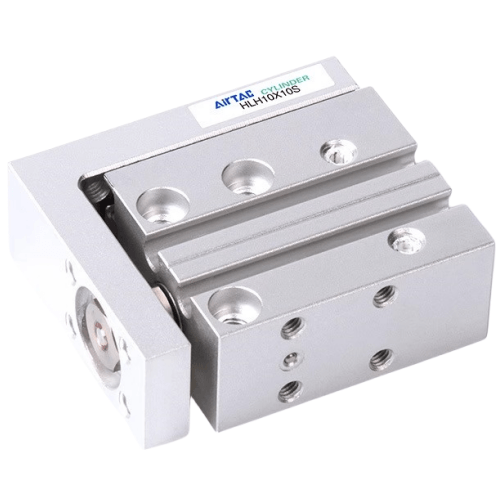

Airtac B52-HLH Copper-Free Precision Slide Table Cylinder B52-HLH10X20S
AirTAC B52-HLH10X20S Copper-Free Precision Slide Cylinder Specifications
- Model: B52-HLH10X20S
- Type: Guided rod slide cylinder with copper-free construction
- Bore size: Ø10mm
- Stroke: 20mm (standard)
- Operating pressure: 0.1–0.9 MPa
- Cushioning: Adjustable rubber buffers at both ends
- Mounting: Dual side mounting holes + base plate
- Material: Aluminum alloy body with hard anodized finish
- Temperature range: -20℃ to 80℃
- Seal material: NBR + special polyurethane blend
- Repeat positioning accuracy: ±0.01mm
- Weight: 0.48kg ±2%
- Dimensions: 120mm(L) × 42mm(W) × 42mm(H)
- Rod end thread: M6×1.0 internal thread
- Lubrication: Pre-lubricated (Grease-free operation compatible)
Ultra-precision guided cylinder featuring copper-free internal components to prevent contamination in sensitive environments. The dual-axis guide structure with linear ball bearings achieves exceptional straightness (≤0.05mm/100mm) and minimal rotational play. Includes built-in magnetic sensor slots for position feedback integration.
- Semiconductor wafer handling robots
- Optical lens alignment systems
- Medical device assembly stations
- High-speed pick-and-place automation (up to 3m/s)
- Cleanroom-compatible production lines
Installation protocol:
Requires 5μm filtered air supply with dew point -20℃ below ambient.
Use only copper-free piping materials. For precision applications,
maintain 0.02-0.05mm clearance between guide rods and mounting surfaces
during alignment. Preload adjustment recommended every 500,000 cycles.
