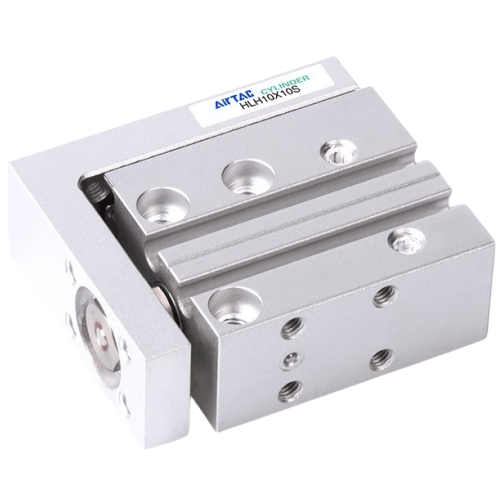

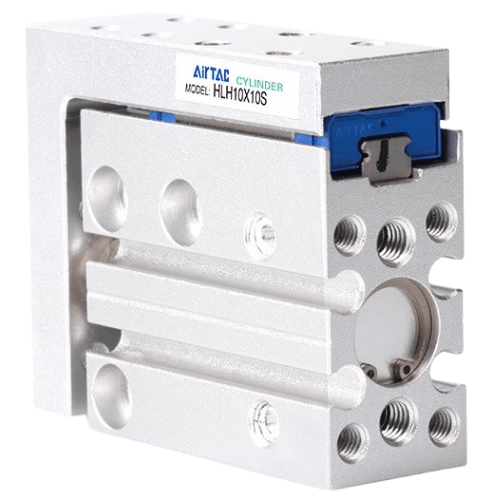

Airtac B52-HLH Copper-Free Precision Slide Table Cylinder B52-HLH16X20S
AirTAC B52-HLH16X20S Copper-Free Precision Slide Cylinder Specifications
- Model: B52-HLH16X20S
- Type: Non-rotating guide rod cylinder with copper-free construction
- Bore size: Ø16mm
- Stroke: 20mm (Standard stroke range: 10-100mm)
- Operating pressure: 0.05-0.9 MPa
- Cushioning: Adjustable pneumatic cushion (both ends)
- Mounting style: Dual base mounting holes (M4×0.7)
- Guide mechanism: 2 precision ground shafts with linear bearings
- Repeat positioning accuracy: ±0.01mm
- Max speed: 500mm/s
- Material: Aluminum alloy body, stainless steel guide rods
- Temperature range: -20℃ to 80℃
- Lubrication: Pre-lubricated (Non-detachable lubrication)
- Protection rating: IP54 (Dust protected & splash resistant)
- Weight: 0.68kg ±2%
- Dimensions: 146mm(L) × 45mm(W) × 45mm(H)
High-rigidity slide cylinder featuring copper-free components for environments requiring strict metal contamination control. The dual linear bearing guide system ensures smooth movement with minimal wobble, while the integrated mounting base simplifies alignment in automated systems. Includes wear-resistant PTFE seals for maintenance-free operation under normal conditions.
- Semiconductor wafer handling robots
- Precision optical component assembly
- Medical device manufacturing lines
- Laboratory automation positioning stages
- 3C product testing equipment
Installation tip:
Maintain 0.5-1mm clearance between slide unit and adjacent components to prevent thermal expansion interference.
Use M4×12mm SHCS (socket head cap screws) with 0.6-0.8Nm torque for base mounting.
| Property | Property Value |
|---|---|
| sku | B52-HLH16X20S |
