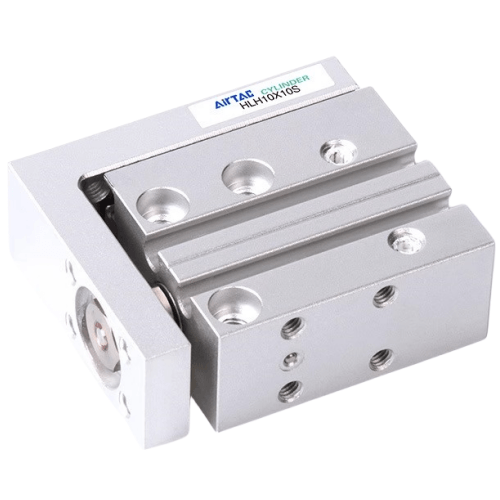

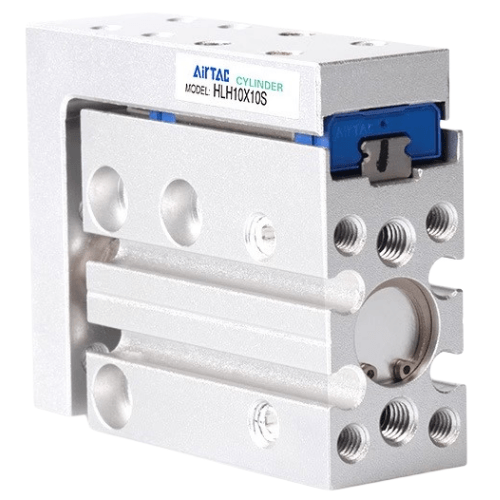

Airtac B52-HLH Copper-Free Precision Slide Table Cylinder B52-HLH6X30S
AirTAC B52-HLH6X30S Copper-Free Precision Slide Table Cylinder Specifications
- Model: B52-HLH6X30S
- Type: Guided slide table cylinder with copper-free construction
- Bore size: 6mm
- Stroke: 30mm
- Operating pressure: 0.05–0.7 MPa
- Cushioning: Adjustable rubber buffers at both ends
- Mounting style: Dual horizontal/vertical mounting slots
- Body material: Anodized aluminum alloy (copper-free design)
- Seal material: Heat-resistant NBR + special grease (FDA compliant)
- Temperature range: -10℃ to 80℃
- Port size: M5x0.8 (standard) with NPT1/8 adaptor option
- Repeat positioning accuracy: ±0.01mm
- Max sliding speed: 500mm/s
- Weight: 1.8kg (including rail and carriage)
- Dimensions: 180mm(L) × 60mm(W) × 60mm(H)
Ultra-precision guided cylinder with hardened steel linear rails and copper-free construction, ideal for cleanroom environments. Features zero-backlash ball bearing carriage and integrated T-slot mounting surfaces. The anti-corrosion surface treatment withstands frequent sterilization cycles.
- Semiconductor wafer handling robots
- Micro-dispensing systems in PCB assembly
- Optical lens positioning stages
- Medical device testing equipment
- Food-grade packaging machinery
Installation note:
Maintain parallel alignment within 0.02mm/m during rail mounting. Use only phosphate-free lubricants.
Requires 5μm filtered dry air with dew point -20℃ below ambient temperature.
| Property | Property Value |
|---|---|
| sku | B52-HLH6X30S |
