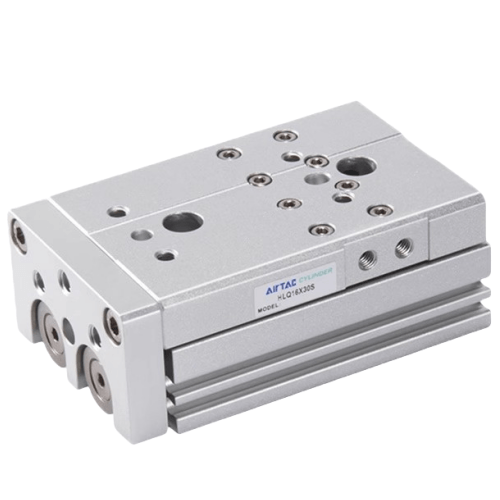

Airtac B52-HLQ Copper-Free Precision Slide Table Cylinder B52-HLQ12X40S
AirTAC B52-HLQ12X40S Copper-Free Precision Slide Table Cylinder Specifications
- Model: B52-HLQ12X40S
- Type: Guided rod-type slide cylinder (copper-free design)
- Bore size: Ø12mm
- Stroke: 40mm (±0.5mm tolerance)
- Structure: Double-acting with precision linear guide
- Material: Aluminum alloy body (ADC12), Stainless steel guide rods (SUS304)
- Seals: NBR + Special fluorine rubber hybrid seals
- Operating pressure: 0.1-0.9 MPa
- Temperature range: -20℃ to 80℃
- Cushioning: Adjustable air cushion (both ends)
- Mounting: Dual side mounting slots (M4 threaded)
- Sensor compatibility: Built-in magnet for cylinder position detection
- Repeat positioning accuracy: ≤±0.01mm
- Weight: 1.2kg (excluding accessories)
- Dimensions: 200mm(L) × 42mm(W) × 38mm(H)
- Surface treatment: Hard anodized (guide rails), Electroless nickel plating (rod ends)
- Cleanroom compatibility: Class 100 compliant
Ultra-precision guided cylinder with copper-free construction for contamination-sensitive environments. Features integrated linear motion guidance achieving ≤5μm parallel deviation. The dual-seal design prevents particle generation, with low-friction (<0.003 dynamic friction coefficient) seals enabling 0.5m/s smooth operation. Includes anti-rotation mechanism for angular displacement prevention.
- Semiconductor wafer handling robots
- Optical lens coating equipment positioning
- Medical PCR testing instrument stages
- High-speed pick-and-place assembly (≤3g acceleration)
- Cleanroom-compatible automation systems
Installation protocol:
Requires ISO 8573-1:2010 Class 3.4.2 compressed air. Lubricate with ISO VG32 turbine oil
during initial installation. Maintain 0.5mm minimum clearance between guide rails and
adjacent components for thermal expansion. Avoid lateral forces exceeding 15N.
