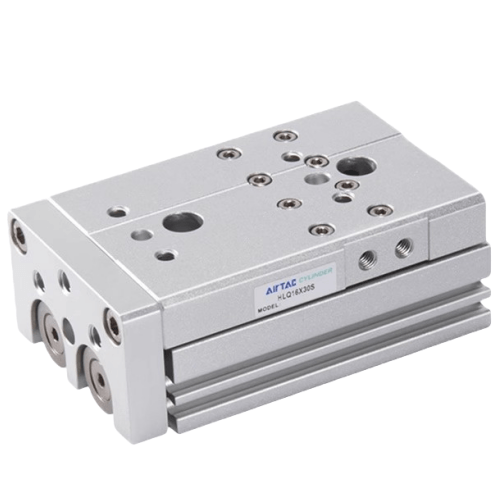

Airtac B52-HLQ Copper-Free Precision Slide Table Cylinder B52-HLQ12X75SAF
AirTAC B52-HLQ12X75SAF Copper-Free Precision Slide Cylinder Specifications
- Full model: B52-HLQ12X75SAF
- Series: B52-HLQ (Copper-free series)
- Bore size: 12mm
- Stroke: 75mm ±0.5mm
- Structure: Dual-axis guide rod type
- Material: Aluminum alloy body with copper-free treatment
- Operating pressure: 0.15-0.8 MPa
- Cushioning: Adjustable buffer (both ends)
- Repeat positioning accuracy: ±0.01mm
- Seal material: NBR + PU combination
- Piston speed: 50-800 mm/s
- Sensor type: Built-in magnet for magnetic switch (SAF suffix indicates sensor-ready)
- Mounting options: Side mounting holes & front flange
- Temperature range: -20℃ to 80℃
- Lubrication: Pre-lubricated (maintenance-free design)
- Weight: 0.62 kg ±2%
- Dimensions: 150mm(L) × 42mm(W) × 32mm(H)
Precision-engineered slide cylinder featuring copper-free construction ideal for cleanroom and corrosive environments. The dual-axis guide rod design ensures exceptional straightness (≤0.05mm/100mm) and minimal rotational play. Integrated T-slot on piston surface allows direct tooling attachment. Requires 5μm filtered air supply.
- Semiconductor wafer handling robots
- Pharmaceutical blister packaging machines
- Optical lens positioning systems
- PCB inspection equipment
- Medical analyzer linear stages
Installation note:
Maintain 0.02-0.05mm alignment tolerance during mounting. For full-stroke operation,
allow 10mm extra clearance at both ends. Use M3×0.5 mounting screws (max torque 1.2N·m).
| Property | Property Value |
|---|---|
| sku | B52-HLQ12X75SAF |
