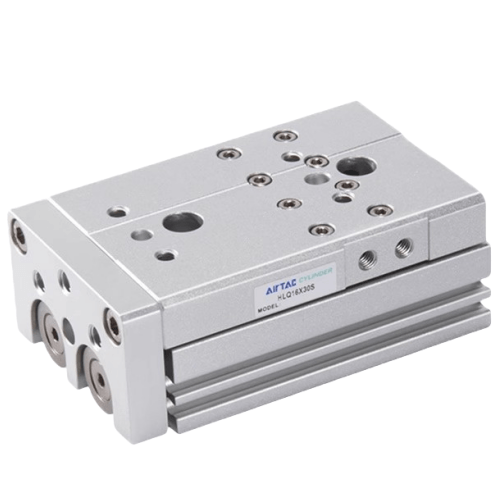

Airtac B52-HLQ Copper-Free Precision Slide Table Cylinder B52-HLQ12X75SBS
AirTAC B52-HLQ12X75SBS Copper-Prohibited Precision Slide Table Cylinder Specifications
- Full Model Code: B52-HLQ12X75SBS
- Series: B52-HLQ (Copper-free precision linear guide type)
- Bore Size: 12mm
- Stroke: 75mm (±0.5mm tolerance)
- Structure: Dual-axis guide rod with linear ball bearings
- Buffer Type: Adjustable rubber cushion (both ends)
- Operating Pressure: 0.05-0.8 MPa
- Temperature Range: -20℃ to 80℃
- Material: Aluminum alloy body (anodized), stainless steel rods
- Port Size: M5x0.8 (G1/8 adapter optional)
- Sensor Compatibility: Built-in magnet for inductive proximity switches (SM/SMT series)
- Repeat Positioning Accuracy: ±0.01mm
- Max Speed: 500mm/s
- Lubrication: Pre-lubricated (No re-lube required for 1000km travel)
- Mounting: Standard horizontal/vertical (axial load ≤15N)
- Protection Rating: IP54 (standard), IP67 with optional wipers
- Weight: 680g ±2%
- Dimensions:
- Length: 162mm (full extension: 237mm)
- Width: 42mm (guide block)
- Height: 42mm (including mounting base)
Ultra-precision guided cylinder with copper-free construction for semiconductor/medical applications. Features dual-axis linear ball guides achieving micron-level repeatability. The chrome-plated piston rod integrates with hardened guide shafts (HRC60+) for minimal deflection under side loads. Anti-creep design maintains position stability during pressure drops.
- Wafer handling robots in cleanrooms
- Optical lens alignment systems
- Micro-dispensing equipment (UV adhesives, conductive inks)
- High-cycle PCB test fixtures
- DNA sequencing instrument stages
Usage Notes:1. Use filtered air (5μm+) with dew point -20℃ below ambient
2. Avoid lateral force >5N on rod end
3. For vertical mounting, reduce speed to 300mm/s max
4. Copper-free design mandatory for EUV lithography environments
| Property | Property Value |
|---|---|
| sku | B52-HLQ12X75SBS |
