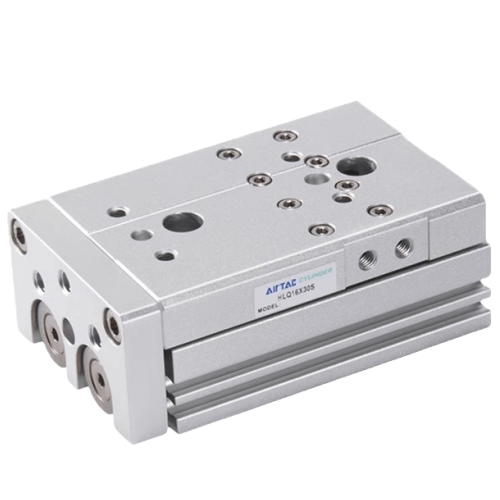

Airtac B52-HLQ Copper-Free Precision Slide Table Cylinder B52-HLQ16X100SAS
AirTAC B52-HLQ16X100SAS Copper-Free Precision Slide Table Cylinder Specifications
- Model: B52-HLQ16X100SAS
- Type: Guided rod-type slide cylinder (copper-free design)
- Bore size: 16mm
- Stroke: 100mm
- Operating pressure: 0.05–0.9 MPa
- Temperature range: -10℃ to 80℃
- Cushion type: Adjustable rubber buffers (both ends)
- Material: Aluminum alloy body, stainless steel guide rods
- Port size: M5x0.8 (dual ports for push/pull operation)
- Piston speed: 50–800 mm/s
- Mounting style: Base plate mounting with 4x M4 threaded holes
- Repeat positioning accuracy: ±0.05mm
- Protection rating: IP54 (standard), IP67 optional
- Lubrication: Pre-lubricated (Grease-free operation available)
- Weight: 0.82 kg (excluding accessories)
- Dimensions: 250mm(L) × 50mm(W) × 50mm(H)
- Certifications: ISO 6432, RoHS compliant
Ultra-precision guided cylinder featuring copper-free construction for cleanroom and semiconductor applications. The dual-guide rod design ensures exceptional lateral load capacity (18N·m max) and minimal deflection during high-speed operation. Integrated T-slot on slide table allows modular tooling attachment. Optional magnetic sensor grooves (SAS suffix indicates sensor-ready design).
- Wafer handling robots in semiconductor FABs
- Optical lens positioning systems
- Medical device assembly lines
- PCB inspection equipment
- Cleanroom material transfer systems
Installation note:
For optimal performance, align guide rods parallel to gravitational direction.
Use only copper-free air supply (max 0.3μm filtration). Lubricate guide rails
every 500km travel with ISO VG32 grade oil if non-grease-free version.
