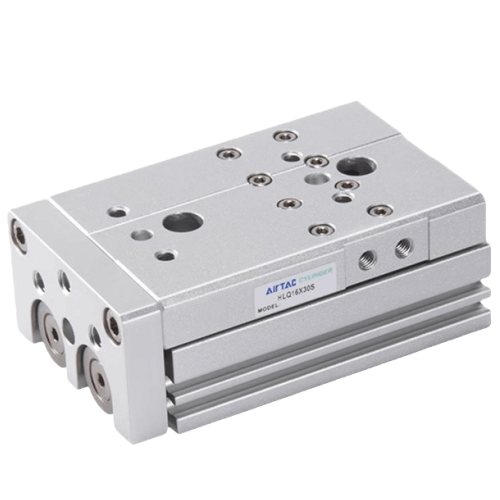

Airtac B52-HLQ Copper-Free Precision Slide Table Cylinder B52-HLQ16X100SBF
AirTAC B52-HLQ16X100SBF Copper-Free Precision Slide Table Cylinder Specifications
- Model: B52-HLQ16X100SBF
- Series: B52-HLQ (Copper-Free Series)
- Bore size: 16mm
- Stroke: 100mm
- Structure type: Dual-axis guided slide mechanism
- Mounting style: Side-mount flange with precision alignment grooves
- Material: Anodized aluminum body, stainless steel piston rod
- Copper-free design: All components compliant with semiconductor/medical environments
- Operating pressure: 0.1–0.9 MPa
- Cushioning: Adjustable pneumatic cushioning at both ends
- Repeat positioning accuracy: ±0.01mm
- Temperature range: -20℃ to 80℃
- Seal material: FDA-compliant NBR seals
- Port size: M5x0.8 (standard), optional G1/8
- Weight: 0.85kg (bare cylinder), 1.2kg (with guide rails)
- Dimensions: 150mm(L) × 40mm(W) × 40mm(H) (at mid-stroke position)
- Rod end type: Female M6x1 threaded
- Protection rating: IP67 (wipers included)
High-precision linear actuator with integrated guide rails, featuring copper-free construction for cleanroom and corrosive environments. The dual-axis design eliminates rotational torque for ultra-stable linear motion. Precision ground rods and recirculating ball bearings ensure smooth operation with ≤0.03mm lateral play. Compatible with vacuum applications.
- Semiconductor wafer handling robots
- Medical device assembly lines
- Optical lens positioning systems
- Pharmaceutical packaging machinery
- Cleanroom automation (ISO Class 5 compatible)
- Precision dispensing equipment
Installation notes:
Use mounting torque ≤3.5N·m to prevent rail deformation. Lubricate guide rails with ISO VG32 hydraulic oil before initial operation.
Avoid side-load forces exceeding 15N. For vertical mounting, reduce maximum speed by 30%.
