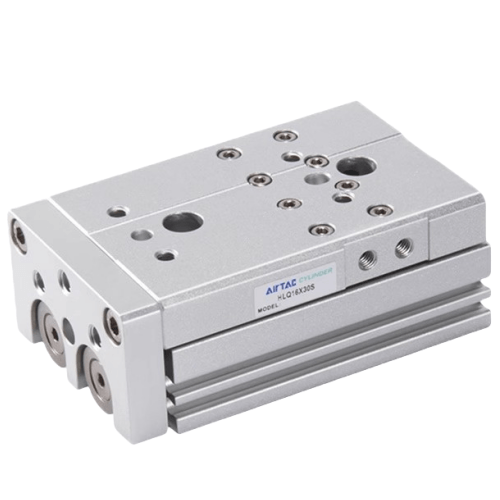

Airtac B52-HLQ Copper-Free Precision Slide Table Cylinder B52-HLQ16X10SBF
AirTAC B52-HLQ16X10SBF Copper-Free Precision Slide Table Cylinder Specifications
- Model: B52-HLQ16X10SBF
- Type: Guided rod slide table cylinder (copper-free design)
- Bore size: 16mm
- Stroke: 10mm
- Operating pressure: 0.1-0.9 MPa
- Temperature range: -20℃ to 80℃
- Material: Aluminum alloy body with copper-free treatment
- Buffer type: Elastic cushioning + adjustable stopper
- Mounting style: Standard base mounting (horizontal/vertical)
- Repeat positioning accuracy: ±0.01mm
- Max speed: 500mm/s
- Port size: M5x0.8 (dual ports)
- Lubrication: Pre-lubricated (maintenance-free)
- Protection rating: IP40
- Weight: 0.65kg ±5%
- Dimensions: 90mm(L) × 40mm(W) × 40mm(H) (stroke extended)
High-precision linear motion solution featuring copper-free construction to prevent contamination in sensitive environments. Integrated guide rails with hardened steel shafts ensure smooth movement and minimal backlash. The SBF variant includes enhanced dust wipers and optional position sensor compatibility.
- Semiconductor wafer handling robots
- Medical device assembly lines
- Precision optical component positioning
- Laboratory automation stages
- Cleanroom-compatible machinery
Installation note:
Ensure proper alignment using the dual mounting slots (M4 thread). For vertical mounting,
use supplemental support brackets when payload exceeds 2kg. Lubricate guide shafts with
ISO VG32 hydraulic oil if operated continuously above 60℃.
| Property | Property Value |
|---|---|
| sku | B52-HLQ16X10SBF |
