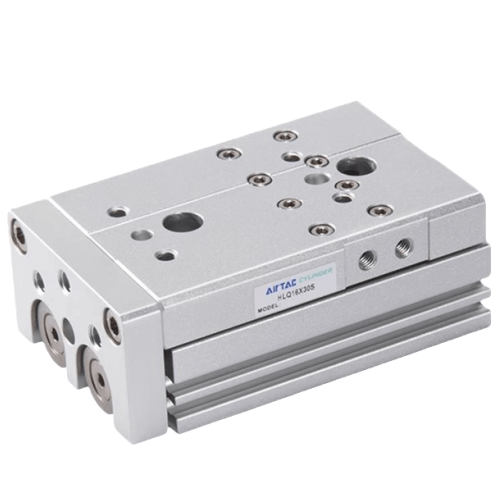

Airtac B52-HLQ Copper-Free Precision Slide Table Cylinder B52-HLQ16X30SB
AirTAC B52-HLQ16X30SB Copper-Free Precision Slide Cylinder Specifications
- Model: B52-HLQ16X30SB
- Type: Non-rotating precision guide rod cylinder (copper-free design)
- Bore size: 16mm
- Stroke: 30mm
- Operating pressure: 0.1-0.9 MPa
- Temperature range: -20℃ to 80℃
- Cushioning: Adjustable buffer (both ends)
- Seal material: NBR + PU combination
- Rod material: Stainless steel (SUS304)
- Port thread: M5×0.8
- Mounting type: Square flange base (MF12)
- Repeat positioning accuracy: ±0.01mm
- Weight: 0.42kg
- Dimensions: 102mm(L) × 36mm(W) × 42mm(H)
High-precision linear motion cylinder featuring copper-free construction for cleanroom and chemical environments. The dual guide rod design ensures minimal deflection (±0.05mm/m) during operation. Integrated scraper seal prevents particulate ingress, with PTFE-impregnated bushings for dry-run capability. Requires ISO 8573-1:2010 Class 3-4-3 compressed air.
- Semiconductor wafer handling robots
- Pharmaceutical blister packaging machines
- Optical lens coating systems
- High-speed PCB component placement
- Laboratory automation with corrosive atmospheres
Installation note:
Maintain parallel alignment within 0.02mm/m using included shim washers.
Lubricate with ISO VG32 turbine oil for initial 500km maintenance cycle.
For vertical mounting, install exhaust mist separator (AMF-03 recommended).
| Property | Property Value |
|---|---|
| sku | B52-HLQ16X30SB |
