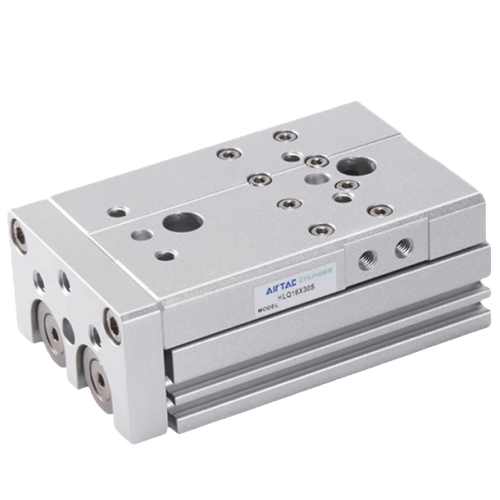

Airtac B52-HLQ Copper-Free Precision Slide Table Cylinder B52-HLQ16X40SAS
AirTAC B52-HLQ16X40SAS Copper-Restricted Precision Slide Cylinder Specifications
- Full model code: B52-HLQ16X40SAS
- Series: B52-HLQ (Copper-free precision linear guide type)
- Bore size: 16mm
- Stroke: 40mm ±0.5mm
- Mounting type: SAS (Dual-axis support block)
- Operating pressure: 0.05-0.9 MPa
- Cushioning: Adjustable pneumatic cushion (both ends)
- Piston material: Copper-free anodized aluminum alloy
- Rod material: Stainless steel SUS304
- Seal material: NBR + PU hybrid seals
- Guide mechanism: Precision linear ball bearing
- Repeat positioning accuracy: ±0.01mm
- Temperature range: -20℃ to 80℃
- Lubrication: Pre-lubricated (Molykote EM-50L)
- Protection rating: IP54 (standard), IP67 optional
- Weight: 0.82kg ±3%
- Dimensions: 160mm(L) × 42mm(W) × 38mm(H)
Ultra-low friction slide cylinder with copper-restricted design for contamination-sensitive environments. Features dual-axis stabilization through linear guides, achieving micron-level positioning repeatability. The copper-free construction prevents catalytic reactions in specific chemical environments.
- Semiconductor wafer handling robots
- Lithium battery production line automation
- Pharmaceutical blister packaging machines
- Optical lens coating systems
- High-vacuum chamber actuators (with optional seals)
Installation guidelines:
Requires alignment within 0.05mm/m perpendicularity tolerance.
Lubricate guide rails with ISO VG32 turbine oil every 50km of travel.
Avoid lateral loads exceeding 15N. For vertical mounting, use counterbalance valves.
