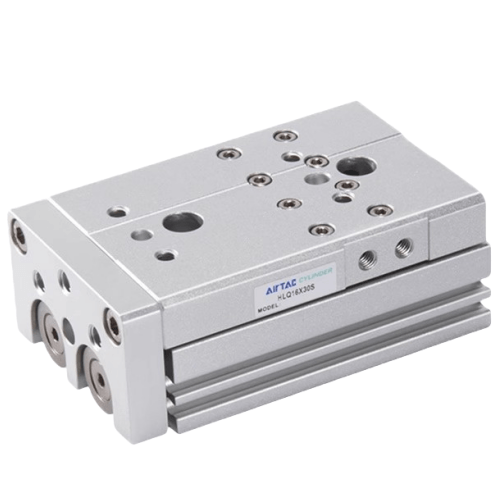

Airtac B52-HLQ Copper-Free Precision Slide Table Cylinder B52-HLQ16X75SB
AirTAC B52-HLQ16X75SB Copper-Free Precision Slide Table Cylinder Specifications
- Model: B52-HLQ16X75SB
- Series: B52-HLQ (Copper-Free Design)
- Bore size: 16mm
- Stroke: 75mm
- Operating pressure: 0.05–0.7 MPa
- Temperature range: -10℃ to 80℃
- Cushioning: Adjustable rubber buffer
- Port size: M5x0.8 (Dual mounting orientation)
- Piston material: Aluminum alloy (hard anodized)
- Rod material: SUS304 stainless steel
- Seal material: NBR + Special polymer (copper-free)
- Guide mechanism: Dual linear ball bearings
- Repeat positioning accuracy: ±0.01mm
- Weight: 0.9kg (excluding accessories)
- Dimensions: 225mm(L) × 40mm(W) × 42mm(H) (Full extension)
- Mounting: ISO 15552 standard base slots
- Accessories: Mounting brackets, stroke adjustment bolts (optional)
High-precision linear motion cylinder featuring copper-free construction for cleanroom and chemical environments. Integrated slide table design combines cylinder thrust with guided linear motion, achieving 0.01mm repeatability. Hardened guide rails and preloaded ball bearings ensure minimal backlash during high-speed reciprocation (max 1.5m/s).
- Semiconductor wafer handling robots
- Pharmaceutical packaging line positioning
- Lens coating machine precision stages
- Battery cell stacking mechanisms
- Optical inspection equipment
Installation note:
Lubricate guide rails with silicone-free grease (VISCOSITY 10-15cSt) before initial use.
Maintain parallelism within 0.05mm during alignment. Use anti-vibration pads when
mounting on servo-driven systems.
| Property | Property Value |
|---|---|
| sku | B52-HLQ16X75SB |
