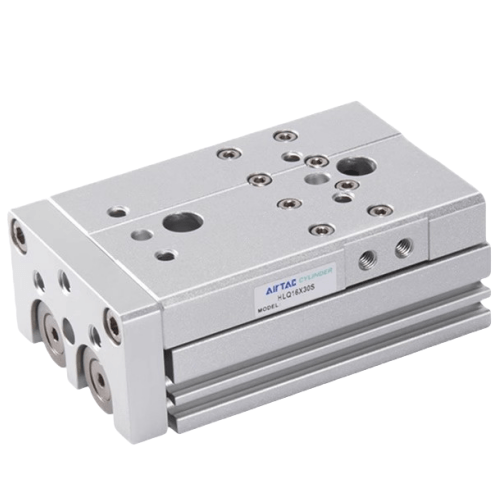

Airtac B52-HLQ Copper-Free Precision Slide Table Cylinder B52-HLQ20X40SA
AirTAC B52-HLQ20X40SA Copper-Free Precision Slide Table Cylinder Specifications
- Model: B52-HLQ20X40SA
- Type: Guided rod-type slide cylinder with copper-free design
- Bore size: 20mm
- Stroke: 40mm (standard), customizable up to 300mm
- Operating pressure: 0.1–0.9 MPa
- Temperature range: -10℃ to 80℃
- Cushioning: Adjustable pneumatic cushion (both ends)
- Mounting style: Horizontal slide base with M4 threaded holes
- Material:
- Cylinder tube: Hard anodized aluminum alloy
- Piston rod: Stainless steel (SUS304)
- Seals: NBR + PU combination
- Port size: M5x0.8 (dual ports at both ends)
- Max speed: 500 mm/s
- Repeat positioning accuracy: ±0.01mm
- Weight: 1.2 kg (excluding accessories)
- Dimensions:
- Body width: 52mm
- Body height: 40mm
- Total length: 160mm (base length 120mm + stroke)
High-precision linear motion solution with copper-free construction, specifically engineered for environments sensitive to copper contamination. Features dual guide rods for enhanced stability and integrated slide base for direct mounting. The hard chrome-plated guide shafts and preloaded ball bushings ensure minimal friction and zero backlash during reciprocating motion.
- Semiconductor wafer handling systems
- Pharmaceutical packaging lines
- Optical lens positioning stages
- Food-grade automation equipment
- Precision laboratory instruments
- Cleanroom assembly processes
Installation note:
Maintain horizontal alignment within ±0.5° deviation. Use filtered dry air (40μm+5μm filtration) and lubricate with ISO VG32 turbine oil. For high-cycle applications (>1 million cycles), implement periodic re-lubrication every 500,000 operations.
