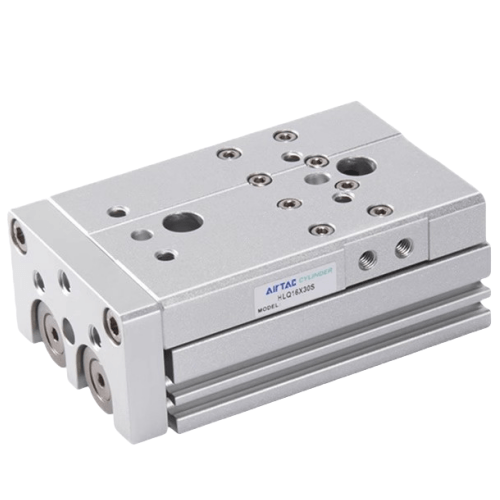

Airtac B52-HLQ Copper-Free Precision Slide Table Cylinder B52-HLQ20X40SAS
AirTAC B52-HLQ20X40SAS Copper-Free Precision Slide Table Cylinder
- Full Model: B52-HLQ20X40SAS
- Series: HLQ Compact Slide Guide Type
- Bore Size: Ø20mm
- Stroke: 40mm (Standard)
- Operating Pressure: 0.05-0.9 MPa
- Mounting Style: Dual-rail flange base (SAS suffix)
- Cushioning: Adjustable pneumatic cushion (both ends)
- Material: Aluminum alloy body with copper-free components
- Rod Material: Stainless steel (SUS304)
- Seals: High-grade PU seals
- Temperature Range: -10℃ to 80℃
- Port Size: M5x0.8 (Standard) / NPT1/8 optional
- Repeat Positioning Accuracy: ±0.01mm
- Max Speed: 500mm/s
- Protection Class: IP54
- Weight: 1.8kg (including rail & accessories)
- Dimensions: 200mm(L) × 42mm(W) × 62mm(H) (at mid-stroke)
High-precision guided cylinder with copper-free construction for cleanroom and chemical environments. Features dual linear guide rails for exceptional moment resistance (40N·m lateral rigidity) and minimal stick-slip effect. Integrated mounting slots enable tool-free sensor installation. Lubrication-free design reduces particle generation.
- Semiconductor wafer handling robots
- Medical device assembly lines
- Optical lens positioning systems
- High-frequency pick-and-place operations (up to 120cpm)
- Corrosive atmosphere environments (copper-free advantage)
Installation Note:
Requires 0.3μm filtered air supply. Use Cushion Lock (CL) series of FRL units for optimal motion control.
Alignment tolerance ≤0.05mm/m. Lubricate guide rails with ISO VG32 hydraulic oil if used below -5℃.
| Property | Property Value |
|---|---|
| sku | B52-HLQ20X40SAS |
