Airtac B52-HLQ Copper-Free Precision Slide Table Cylinder B52-HLQ20X50SBS

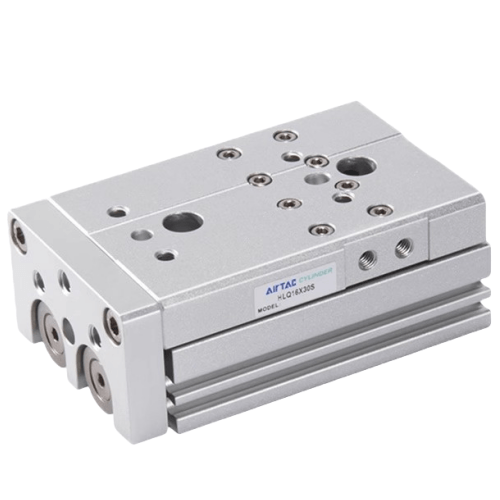

AirTAC B52-HLQ20X50SBS Copper-Free Precision Slide Table Cylinder
- Full Model Code: B52-HLQ20X50SBS
- Series: B52-HLQ (Copper-free design)
- Bore Size: 20mm
- Stroke: 50mm (±0.5mm tolerance)
- Operating Pressure: 0.05-0.9 MPa
- Temperature Range: -10℃ to 70℃
- Cushioning: Adjustable rubber buffer + shock absorber
- Position Detection: Built-in magnetic sensor slot (NPN/PNP optional)
- Body Material: Aluminum alloy (anodized)
- Rod Material: Stainless steel SUS304
- Seal Material: Fluororubber (FKM) for copper-free compatibility
- Mounting Type: Standard base mounting with M4 threaded holes
- Port Size: M5x0.8 (dual ports)
- Lubrication: Pre-lubricated (non-silicone grease)
- Repeat Positioning Accuracy: ±0.01mm
- Max Speed: 500mm/s
- Protection Rating: IP54
- Weight: 850g ±3%
- Dimensions: 198mm(L) × 42mm(W) × 42mm(H)
High-precision slide guide cylinder with copper-free construction for semiconductor and chemical environments. Features integrated linear guide rails for enhanced moment resistance and anti-rotation stability. The low-friction design maintains ≤0.15N starting pressure, with hardened stainless steel shafts (HRC60+) for wear resistance.
- Wafer handling robots in cleanrooms
- Precision optical component positioning
- Pharmaceutical blister packaging machines
- Lithium battery production line automation
- Micro-dispensing systems for adhesives
Installation guidelines:
Use M4x8 mounting screws (max torque 1.2N·m). Maintain 0.5mm alignment tolerance during rail integration.
For vacuum applications, specify "-V" version with special seals. Avoid lateral impact during stroke end.
