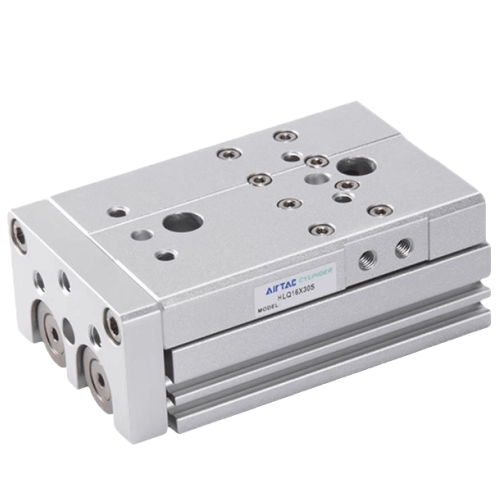

Airtac B52-HLQ Copper-Free Precision Slide Table Cylinder B52-HLQ8X30S
AirTAC B52-HLQ8X30S Copper-Free Precision Slide Table Cylinder Specifications
- Model: B52-HLQ8X30S
- Series: B52-HLQ (Copper-free design)
- Bore size: 8mm
- Stroke: 30mm (±0.5mm precision)
- Operating pressure: 0.05–0.9 MPa
- Piston speed: 50–800 mm/s
- Temperature range: -10℃ to 80℃
- Material: Aluminum alloy body, CR/SUS guide rods
- Surface treatment: Hard anodized (black)
- Seal material: Polyurethane (NBR optional)
- Cushioning: Adjustable pneumatic cushion
- Port size: M5x0.8 (dual ports)
- Repeat positioning accuracy: ±0.01mm
- Weight: 480g ±5%
- Dimensions: 118mm(L) × 30mm(W) × 25mm(H)
- Mounting: Dual linear guide rails
- Lubrication: Pre-lubricated (Grease-free operation)
High-precision copper-free cylinder with integrated slide table, featuring dual linear guides for exceptional lateral rigidity. The aluminum alloy construction with hard coat anodizing ensures corrosion resistance in semiconductor/medical environments. Optimized for cleanroom applications with minimal particle generation.
- PCB component placement machines
- Lens polishing equipment positioning
- Medical device assembly lines
- Laboratory automation sample handling
- 3C product testing jigs
- Precision dispensing systems
Installation guidelines:
Mount on flat surface (flatness ≤0.02mm), use M3 mounting screws with 0.5Nm torque limit.
Maintain 0.5mm clearance from adjacent components. For vertical mounting,
install air exhaust silencers to prevent lubricant accumulation.
| Property | Property Value |
|---|---|
| sku | B52-HLQ8X30S |
