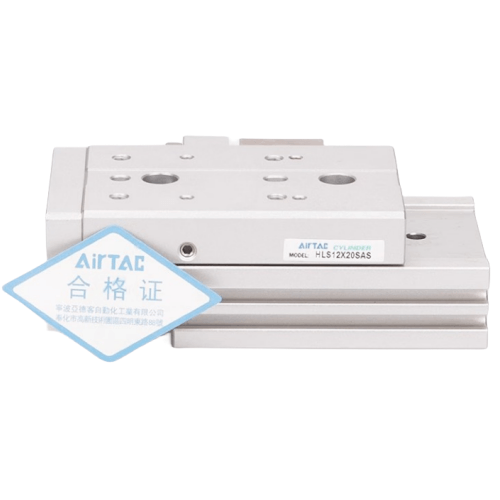

Airtac B52-HLS Non-Copper Precision Slide Cylinder B52-HLS12X30SAS
The AirTAC Airtac B52-HLS Non-Copper Precision Slide Cylinder B52-HLS12X30SAS is a genuine HLS slide-table cylinder: a double-acting dual-rod air cylinder integrated with a cross-roller guide so the table travels straight with high rigidity and low deflection. A floating joint spares the rod from side torque; the magnet is fitted as standard.
- TypeSlide-table, double acting
- Guidecross-roller guide
- Operating pressure0.15 - 0.7 MPa (22 - 100 psi)
- Port sizeM5x0.8
- CushionBumper (+ shock-absorber option)
- Magnet / sensorStandard; CMSH/DMSH/EMSH
- ThreadPT
About the Airtac B52-HLS Non-Copper Precision Slide Cylinder B52-HLS12X30SAS
The AirTAC HLS12X30SAS is a double-acting dual-rod slide-table cylinder that pairs a cross-roller linear guide with an air cylinder. The cross-roller guide offers high precision, rigidity, and low deflection, and the dual rods provide moderate thrust for a 12 mm bore across a 30 mm stroke. A floating joint prevents side torque from reaching the rods. The AS adjuster installs an adjustable rubber stopper on the extension side only, letting you dial in the forward end position.
This is a genuine AirTAC part with a standard sintered NdFeB magnet for position sensing using CMSH, DMSH, or EMSH switches. We confirm thrust, dimensions, and load-moment values from the AirTAC datasheet or on-page spec table on request.
Airtac B52-HLS Non-Copper Precision Slide Cylinder B52-HLS12X30SAS Technical Specifications
| Model | Airtac B52-HLS Non-Copper Precision Slide Cylinder B52-HLS12X30SAS |
|---|---|
| Type | Slide-table cylinder, double acting, dual rod |
| Series / guide | HLS (cross-roller guide) |
| Port size | M5x0.8 (PT thread) |
| Fluid | Air, filtered to 40 um |
|---|---|
| Operating pressure | 0.15 - 0.7 MPa (22 - 100 psi) |
| Proof pressure | 1.2 MPa (175 psi) |
| Temperature | -20 to 70 C |
| Speed range | 50 - 500 mm/s (meter-out) |
| Cushion | Bumper; shock-absorber / adjustable-stopper options |
| Magnet / sensor | Standard; CMSH, DMSH, EMSH |
Specifications follow the official AirTAC HL slide-table data. Max working pressure is 0.7 MPa. The table rides on an integrated linear guide — do not apply strong impact or large moment. Allowable load and moment are published as tables and curves, and overall dimensions vary per stroke — ask us and we confirm from the datasheet.
How to choose
Bore 12 is right for tasks needing moderate thrust; a larger bore adds more push. The HLS cross-roller guide is selected when precision, rigidity, and load capacity are critical - it deflects less than the HLQ ball-bearing guide, while HLQ provides superior anti-rust and dust-proof performance. Stroke 30 mm is within the bore 12 stroke range. The AS rubber stopper adjusts cushioning at the extension end only. PT thread is standard; G or NPT can be specified if needed. Contact us to confirm allowable load, moment, and kinetic energy from the published tables and deflection curves.
Applications
Pick-and-Place Head
Cross-roller precision positions small parts during pick-and-place cycles with repeatable accuracy at 30 mm stroke.
Small-Parts Transfer
Transfers components between conveyor stations with straight guided travel and bumper cushioning at each end.
Assembly Stage Slide
Presents a workpiece to an assembly head with rigid cross-roller guidance that resists deflection under tooling load.
FAQ
What does the AS adjuster code mean on HLS12X30SAS?
AS places an adjustable rubber stopper on the extension side only, so you can fine-tune the forward end-of-stroke position. A covers both ends; AF covers retraction only. Shock-absorber options (B, BS, BF) are available on bore 12 but not on bore 6.
Is the magnet standard on the HLS12X30SAS?
Yes, every HLS slide table is magnet-fitted as standard for position sensing with CMSH, DMSH, or EMSH switches. The magnet is not an optional add-on.
