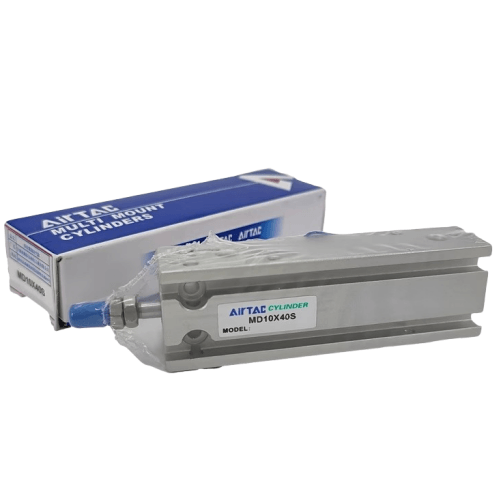

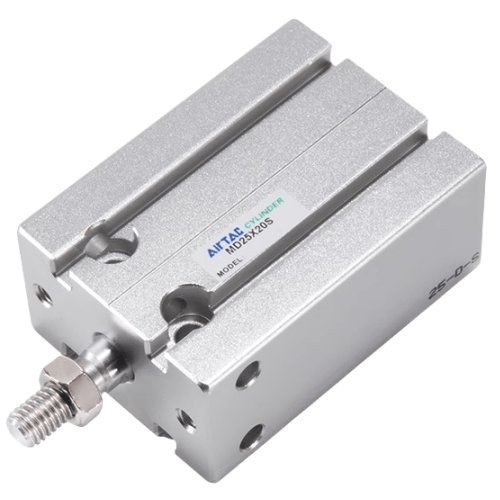

Airtac B52-MD Copper-Free Multi-Position Locking Cylinder B52-MD10X10S
AirTAC B52-MD10X10S Copper-Free Multi-Position Locking Cylinder Specifications
- Model: B52-MD10X10S
- Type: Multi-position locking cylinder (copper-free design)
- Bore size: 10mm
- Stroke: 10mm
- Operating pressure: 0.1–0.9 MPa
- Temperature range: -10℃ to 80℃
- Port size: M5×0.8 (dual ports)
- Material: Aluminum alloy body, stainless steel piston rod
- Seal material: NBR (nitrile rubber)
- Mounting options: 3-axis adjustable clevis mounting
- Cushioning: Adjustable pneumatic cushioning
- Protection rating: IP40
- Weight: 0.25kg (excluding accessories)
- Dimensions: 80mm(L) × 24mm(W) × 24mm(H) (retracted state)
- Extended length: 90mm (max)
Compact multi-position locking cylinder featuring copper-free construction ideal for environments requiring chemical compatibility. The triple-axis adjustable mount enables 360° position flexibility, while the chrome-plated piston rod ensures corrosion resistance. Includes magnetic sensor slots for position feedback (sensors sold separately).
- Semiconductor wafer handling systems
- Pharmaceutical production lines with sterilization processes
- Food packaging machinery (copper-free requirement)
- Precision optical component assembly
- Laboratory automation with position memory needs
Installation note:
Lubricate with phosphate-ester resistant grease (ISO VG32 equivalent) before initial use.
Maximum lateral load: 2.5N at full extension. Avoid silicone-based lubricants.
| Property | Property Value |
|---|---|
| sku | B52-MD10X10S |
