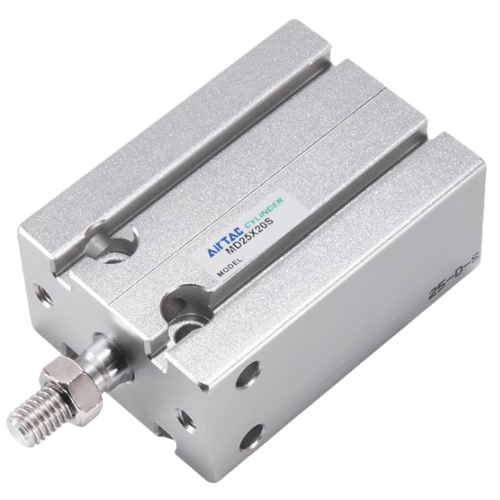

Airtac B52-MD Copper-Free Multi-Position Locking Cylinder B52-MD16X30S
AirTAC B52-MD16X30S Copper-Free Multi-Position Locking Cylinder Specifications
- Model: B52-MD16X30S
- Type: Multi-position locking cylinder (copper-free design)
- Bore size: 16mm
- Stroke: 30mm
- Operating pressure: 0.05–0.95 MPa
- Locking positions: 3 fixed positions (configurable)
- Locking force: 45N at 0.5MPa
- Piston speed: 50–800mm/s
- Temperature range: -10℃ to 80℃
- Material: Aluminum alloy body, CR/SEBS seals
- Port size: M5x0.8 (standard), G1/8 optional
- Weight: 0.52kg ±2%
- Dimensions: 112mm(L) × 42mm(W) × 42mm(H)
- Mounting type: Front/rear dual flange with 25mm spacing
- Rod end: M6x1 internal thread
- Protection rating: IP54 (standard), IP67 optional
Environmentally-conscious pneumatic cylinder featuring copper-free construction for chemical-sensitive applications. Precision ground rod with chrome-plated finish ensures ≤0.01mm/m straightness tolerance. Integrated magnetic piston allows position feedback when paired with sensors (sold separately).
- Pharmaceutical packaging line positioning
- Lithium battery assembly with anti-contamination requirements
- Cleanroom robotic arm articulation
- Semiconductor wafer handling systems
- Precision mold clamping mechanisms
Maintenance protocol:
Use only ISO VG32 or equivalent non-copper-containing lubricants.
Position locking requires minimum 0.3MPa pressure differential.
Avoid lateral loads exceeding 15N·m.
| Property | Property Value |
|---|---|
| sku | B52-MD16X30S |
