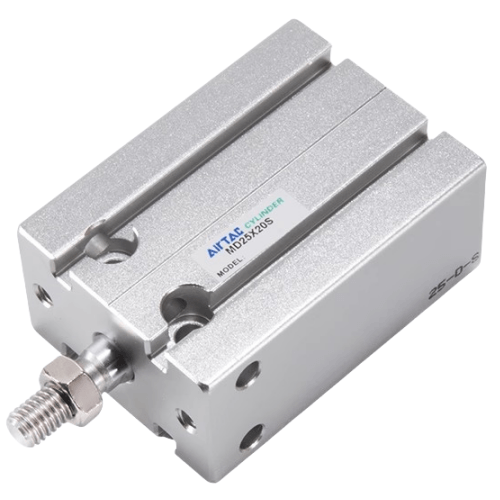

Airtac B52-MD Copper-Free Multi-Position Locking Cylinder B52-MD20X60S
AirTAC B52-MD Series Multi-Position Locking Cylinder Specifications
- Full model: B52-MD20X60S
- Type: Copper-free multi-position locking cylinder (non-rotating rod)
- Bore size: 20mm
- Stroke: 60mm
- Operating pressure: 0.15–0.8 MPa
- Locking positions: 3 preset positions (extended/mid/retracted)
- Locking force: 120N (at 0.5MPa)
- Piston speed: 50–800mm/s
- Port size: M5x0.8 (dual ports)
- Seal material: NBR with copper-free alloy components
- Temperature range: -20℃ to 80℃
- Weight: 0.85kg (excluding accessories)
- Dimensions: 120mm(L) × 34mm(W) × 34mm(H) (fully retracted)
- Rod end: Female M6x1.0 thread
- Cushioning: Adjustable rubber buffer
- Protection rating: IP54 (standard)
Copper-free pneumatic cylinder featuring triple-position mechanical locking mechanism with precision-machined stainless steel guide rods. Designed for environments requiring strict copper contamination control, with corrosion-resistant anodized aluminum body. Includes anti-rotation design for precise linear motion and integrated position sensors (optional). Requires lubricated air (ISO VG32).
- Semiconductor wafer handling equipment
- Pharmaceutical packaging lines
- Food-grade automation systems
- Microscope stage positioning
- Battery manufacturing processes
Installation guidelines:
Mount using precision alignment jigs to ensure parallel installation.
Maintain 0.5–1mm clearance between locking mechanism and stopper plates.
Use only copper-free lubricants (MOFT-2 specification recommended).
| Property | Property Value |
|---|---|
| sku | B52-MD20X60S |
