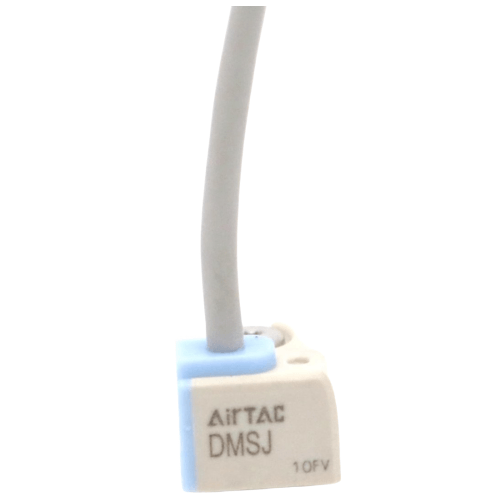

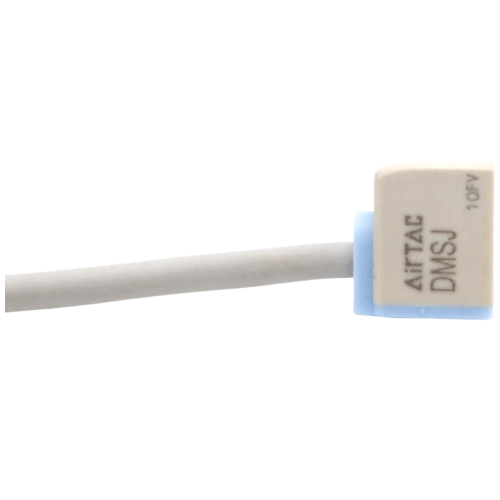

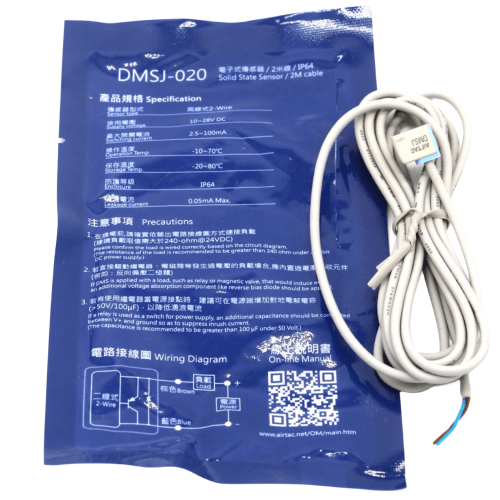

Airtac DMSJ Electronic Sensor DMSJ-PC08
The AirTAC Airtac DMSJ Electronic Sensor DMSJ-PC08 is a genuine DMS magnetic position switch. It senses the magnet ring in a pneumatic cylinder's piston and signals when the piston reaches that point, giving a pnp 3-wire output on 5-30 V DC. It only works on a cylinder that carries a piston magnet.
- TechnologyElectronic (solid-state)
- OutputPNP 3-wire
- Supply voltage5-30 V DC
- ProtectionIP64
- Profile (groove fit)J
- Lead / connectorSee datasheet
- VersionStandard
- RequiresMagnet-equipped cylinder
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the Airtac DMSJ Electronic Sensor DMSJ-PC08
DMSJ-PC08 belongs to AirTAC's DMS range of solid-state electronic switches and carries a PNP 3-wire output for a magnet-equipped AirTAC cylinder piston. The wiring position of the code reads C08, a factory connection variant whose exact termination is not defined in our catalogue data, so we confirm it from the datasheet on request. Supply span is 5-30 V DC and the housing is IP64.
Three-wire switching keeps the ON/OFF level clean at the PLC input because the sensor, not the load loop, defines the signal - a practical advantage over a series-wired 2-wire part on long runs. As always, the J profile is a groove-fit code: match it to your cylinder body and quote both part numbers so we can verify the C08 variant together.
Airtac DMSJ Electronic Sensor DMSJ-PC08 Technical Specifications
| Model | Airtac DMSJ Electronic Sensor DMSJ-PC08 |
|---|---|
| Family | DMS — Electronic cylinder switch |
| Technology | Electronic (solid-state) |
| Output | PNP 3-wire |
| Outputs in this family | 2-wire, NPN 3-wire or PNP 3-wire |
| Lead / connector | See datasheet |
| Supply voltage | 5-30 V DC |
|---|---|
| Protection rating | IP64 |
| Version | Standard version |
| Profile letter | J (cylinder-groove fit) |
| Profiles in this family | E, G, H, J |
| Detects | Piston magnet ring inside the cylinder |
2-wire versions run 10-28 V DC; NPN / PNP 3-wire versions run 5-30 V DC. IP64 as standard. Order the RW version where coolant, washdown or constant cable flexing is present. Switching distance, response time, current rating, voltage drop, LED behaviour, contact life, weight and dimensions are not published in our data set — ask us and we will confirm from the factory datasheet.
Model Code: Airtac DMSJ Electronic Sensor DMSJ-PC08
| DMS | Electronic cylinder switch — electronic (solid-state). |
|---|---|
| J | Profile letter: the mounting / groove type that fits a particular cylinder body. This family offers E, G, H, J. It is a fit code, not a performance grade. |
| P | Output: PNP 3-wire. Blank is 2-wire, N is NPN 3-wire, P is PNP 3-wire. |
| 08 | See datasheet. 020 / 030 / 050 / 100 are 2 / 3 / 5 / 10 m flying leads; M08 and M12 are M8 / M12 connector versions. |
| (blank) | Standard version. |
We do not hold the full profile-to-cylinder-series table, so confirm the profile letter against your cylinder model before ordering — send us the cylinder part number and we will check the fit.
Which Family Do You Need?
- DMSElectronic, 2-wire / NPN / PNP, DC
- EMSMini electronic, 2-wire only, DC
- CMSReed contact, 2-wire, 5-240 V AC/DC
The split is electrical, not quality. Solid-state DMS and EMS are DC-only and suit modern PLC inputs; the reed-based CMS switches a much wider window, so it is the one for AC circuits, relay logic and older panels. The RW (IP68) option exists on DMS and EMS only.
| This switch | DMSJ · PNP 3-wire · 5-30 V DC |
|---|---|
| Consider EMS | the mini 2-wire electronic switch for tight installations |
| Consider CMS | the reed alternative for AC circuits and voltages up to 240 V |
| Mounting parts | F-MQ (round body), F-ACT (tie-rod) |
Where the Airtac DMSJ Electronic Sensor DMSJ-PC08 Is Used
Press-feed part present
Verifying that a feed cylinder has fully advanced before the press stroke is enabled, with the PNP output driving a sourcing PLC input.
AGV lift-mast position
Lift-up signal on automated guided vehicle masts, where the C08 connection variant on this code will be checked against the vehicle's harness drawing.
Harness-built machine retrofits
Panels pre-terminated for special connection codes - we confirm exactly what this variant terminates in before your harness is fabricated.
Is the Airtac DMSJ Electronic Sensor DMSJ-PC08 the Right Switch?
This model makes sense where the controller demands a sourcing three-wire sensor; choose N instead of P for a sinking input card. Because C08 is a real catalogue code position with an unpublished meaning, treat the termination as unconfirmed until we check the datasheet - do not assume a lead length or connector style. General builds are IP64; for washdown or flexing cable tracks the -RW version raises that to IP68. The switch reads nothing unless the cylinder carries the factory magnet option, and the J profile has to seat in the matching groove.
Quick checklist
- ✓ Cylinder has a piston magnet
- ✓ Profile letter fits your cylinder groove
- ✓ Output matches the PLC input (PNP 3-wire)
- ✓ Supply rail is 5-30 V DC
- ✓ Lead length or M8 / M12 connector
- ✓ Coolant or flexing? Use the RW version
Installation & Wiring Notes
- check The cylinder must carry a piston magnet — a plain cylinder cannot be sensed.
- check Slide the switch along the groove to the stop position, then lock it.
- check Keep the supply within 5-30 V DC.
- check Wire pnp 3-wire to match the PLC input's polarity.
- check Keep the lead clear of moving parts; use the RW type where it must flex.
- check Rated IP64 — protect it beyond that rating.
Use the F-MQ bracket on round-body cylinders and F-ACT on tie-rod cylinders where there is no groove to seat the switch. Both are ordered separately from the switch. Switching distance and mounting dimensions come from the factory datasheet — ask us for the sheet that matches your cylinder.
Airtac DMSJ Electronic Sensor DMSJ-PC08 FAQ
Type: electronic solid-state. Output: PNP 3-wire. Supply: 5-30 V DC. Protection: IP64. Wiring: the C08 connection code, a factory variant whose termination we confirm from the datasheet rather than guess.
It does not. M8 connector codes are written M08, so C08 is a separate factory connection variant not described in our published data. Tell us the cylinder series and panel drawing and we will verify the termination and the J profile groove fit from the datasheet.
