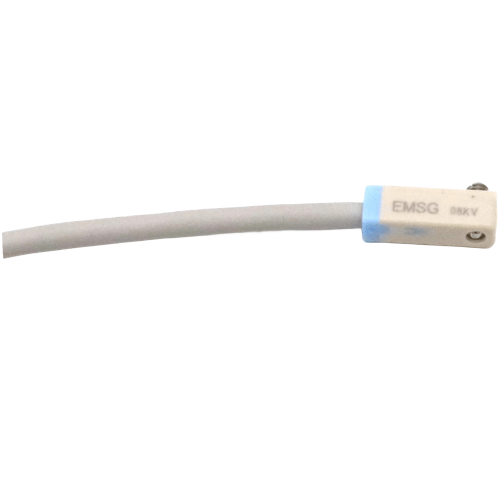

Airtac EMSG G-Type Electronic Sensor EMSG-020
The AirTAC Airtac EMSG G-Type Electronic Sensor EMSG-020 is a genuine EMS magnetic position switch. It senses the magnet ring in a pneumatic cylinder's piston and signals when the piston reaches that point, giving a 2-wire output on 10-28 V DC with a 2 m flying lead. It only works on a cylinder that carries a piston magnet.
- TechnologyElectronic (solid-state), miniature build
- Output2-wire
- Supply voltage10-28 V DC
- ProtectionIP64
- Profile (groove fit)G
- Lead / connector2 m flying lead
- VersionStandard
- RequiresMagnet-equipped cylinder
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the Airtac EMSG G-Type Electronic Sensor EMSG-020
The EMSG-020 is the compact member of AirTAC's sensor range: a mini electronic (solid-state) switch, 2-wire output only, made to seat in tighter sensor grooves than a full-size DMS. Wiring 020 is a 2 m flying lead, the supply window is 10-28 V DC, and the housing is rated IP64. The G profile letter fixes which cylinder groove the body clips into.
Because the output is 2-wire, it connects in series with the load just like a mechanical contact, so no NPN/PNP decision is needed at the input - only the 10-28 V DC level and the small leakage of a solid-state switch have to be tolerated by the load. The slim body suits small-bore and compact cylinders, but confirm the G profile against your cylinder series; it is a fit code, not a performance grade.
Airtac EMSG G-Type Electronic Sensor EMSG-020 Technical Specifications
| Model | Airtac EMSG G-Type Electronic Sensor EMSG-020 |
|---|---|
| Family | EMS — Mini electronic cylinder switch |
| Technology | Electronic (solid-state), miniature build |
| Output | 2-wire |
| Outputs in this family | 2-wire only |
| Lead / connector | 2 m flying lead |
| Supply voltage | 10-28 V DC |
|---|---|
| Protection rating | IP64 |
| Version | Standard version |
| Profile letter | G (cylinder-groove fit) |
| Profiles in this family | G, H |
| Detects | Piston magnet ring inside the cylinder |
Every EMS is 2-wire on a 10-28 V DC supply; there is no NPN / PNP version. IP64 as standard. Order the RW version where coolant, washdown or constant cable flexing is present. Switching distance, response time, current rating, voltage drop, LED behaviour, contact life, weight and dimensions are not published in our data set — ask us and we will confirm from the factory datasheet.
Model Code: Airtac EMSG G-Type Electronic Sensor EMSG-020
| EMS | Mini electronic cylinder switch — electronic (solid-state), miniature build. |
|---|---|
| G | Profile letter: the mounting / groove type that fits a particular cylinder body. This family offers G, H. It is a fit code, not a performance grade. |

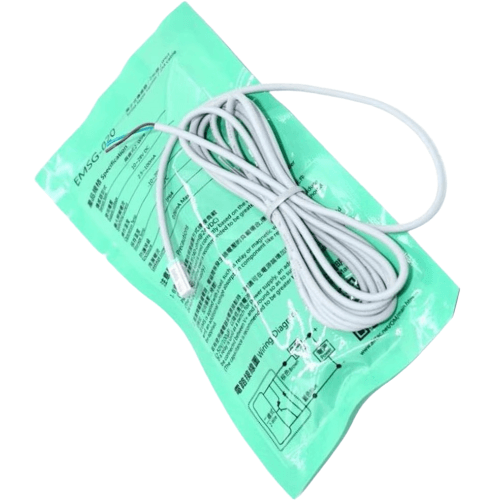

| 020 | 2 m flying lead. 020 / 030 / 050 / 100 are 2 / 3 / 5 / 10 m flying leads; M08 and M12 are M8 / M12 connector versions. |
| (blank) | Standard version. |
We do not hold the full profile-to-cylinder-series table, so confirm the profile letter against your cylinder model before ordering — send us the cylinder part number and we will check the fit.
Which Family Do You Need?
- DMSElectronic, 2-wire / NPN / PNP, DC
- EMSMini electronic, 2-wire only, DC
- CMSReed contact, 2-wire, 5-240 V AC/DC
The split is electrical, not quality. Solid-state DMS and EMS are DC-only and suit modern PLC inputs; the reed-based CMS switches a much wider window, so it is the one for AC circuits, relay logic and older panels. The RW (IP68) option exists on DMS and EMS only.
| This switch | EMSG · 2-wire · 10-28 V DC |
|---|---|
| Consider DMS | the full electronic range, including NPN / PNP 3-wire outputs |
| Consider CMS | the reed alternative for AC circuits and voltages up to 240 V |
| Mounting parts | F-MQ (round body), F-ACT (tie-rod) |
Where the Airtac EMSG G-Type Electronic Sensor EMSG-020 Is Used
Compact gripper rails
Home-and-extended checks on small-bore gripper cylinders where groove width rules out a standard DMS body.
Laboratory dosing slides
Position feedback on mini dosing cylinders in analytical instruments, wired in series at low DC voltage.
Bench fixture clamps
Clamp-advanced indication on assembly-bench tooling, with the 2 m lead reaching a local relay or terminal strip.
Is the Airtac EMSG G-Type Electronic Sensor EMSG-020 the Right Switch?
Choose the EMS when panel space, groove width or a simple series circuit dictates: it is 2-wire, solid-state and DC-supplied at 10-28 V. If your controller prefers a dedicated three-wire signal, step up to a DMS N (NPN) or P (PNP) part; for AC circuits or very wide 5-240 V supplies, a CMS reed switch is the family to look at instead. Lead lengths run 2 to 10 m, or pick an M8/M12 connector code for plug-in service swaps, and the -RW build adds IP68 for washdown and moving cable tracks. The G profile must seat in the cylinder's groove, and the cylinder must have the magnet option fitted.
Quick checklist
- ✓ Cylinder has a piston magnet
- ✓ Profile letter fits your cylinder groove
- ✓ Output matches the PLC input (2-wire)
- ✓ Supply rail is 10-28 V DC
- ✓ Lead length or M8 / M12 connector
- ✓ Coolant or flexing? Use the RW version
Installation & Wiring Notes
- check The cylinder must carry a piston magnet — a plain cylinder cannot be sensed.
- check Slide the switch along the groove to the stop position, then lock it.
- check Keep the supply within 10-28 V DC.
- check Wire 2-wire to match the PLC input's polarity.
- check Keep the lead clear of moving parts; use the RW type where it must flex.
- check Rated IP64 — protect it beyond that rating.
Use the F-MQ bracket on round-body cylinders and F-ACT on tie-rod cylinders where there is no groove to seat the switch. Both are ordered separately from the switch. Switching distance and mounting dimensions come from the factory datasheet — ask us for the sheet that matches your cylinder.
Airtac EMSG G-Type Electronic Sensor EMSG-020 FAQ
Mini electronic (solid-state) switch, 2-wire output, 10-28 V DC supply, IP64 protection, terminated in a 2 m flying lead. The G profile selects the cylinder-groove fit.
The EMS is the mini 2-wire electronic body for tight grooves; a DMS adds NPN or PNP 3-wire choices and the -RW IP68 waterproof build, while a CMS reed switch uses a mechanical contact and runs on 5-240 V AC or DC. Whichever you pick, the cylinder must carry the factory magnet for anything to be detected.
Authorized Export Seller
Genuine AirTAC parts produced by AirTAC factory.
1-Year Warranty
Covers non-human-caused product damage.
Fast Dispatch
Standard models are processed and dispatched in 3-5 business days.
Fast Reply
Most inquiries answered within 7-8 hours.
Related AirTAC Cylinder Sensors
Request a Quote for Airtac EMSG G-Type Electronic Sensor EMSG-020
Send us the quantity, your cylinder model (so we can confirm the profile fit) and the destination. We confirm price, availability and lead time — usually within 7-8 hours.
