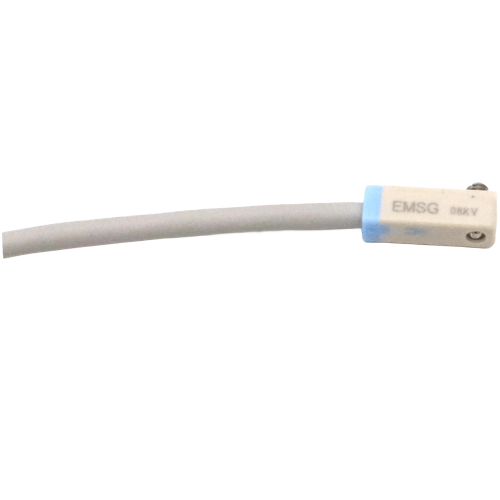

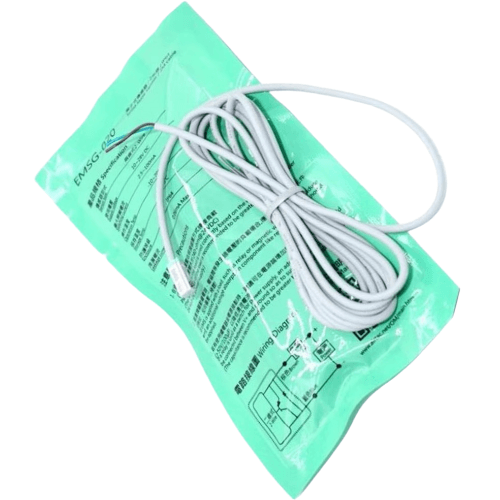

Airtac EMSG G-Type Electronic Sensor EMSG-C12
The AirTAC Airtac EMSG G-Type Electronic Sensor EMSG-C12 is a genuine EMS magnetic position switch. It senses the magnet ring in a pneumatic cylinder's piston and signals when the piston reaches that point, giving a 2-wire output on 10-28 V DC. It only works on a cylinder that carries a piston magnet.
- TechnologyElectronic (solid-state), miniature build
- Output2-wire
- Supply voltage10-28 V DC
- ProtectionIP64
- Profile (groove fit)G
- Lead / connectorSee datasheet
- VersionStandard
- RequiresMagnet-equipped cylinder
About the Airtac EMSG G-Type Electronic Sensor EMSG-C12
The EMSG-C12 is a mini electronic position switch from AirTAC's EMS range. Its solid-state, 2-wire body clips into a cylinder groove and reads the piston magnet of an AirTAC cylinder built with the magnet option. Supply is 10-28 V DC and the general housing carries IP64 protection. The wiring token C12 is a factory connection variant that is not defined in our catalogue data, so confirm its exact termination from the datasheet before ordering.
Because the output is 2-wire, it wires in series with the load much like a mechanical contact, which keeps panel wiring simple. One caution: the C12 code position is a factory variant we will confirm from the datasheet on request, and the G profile must match the sensor groove of your cylinder or the switch will not seat.
Airtac EMSG G-Type Electronic Sensor EMSG-C12 Technical Specifications
| Model | Airtac EMSG G-Type Electronic Sensor EMSG-C12 |
|---|---|
| Family | EMS — Mini electronic cylinder switch |
| Technology | Electronic (solid-state), miniature build |
| Output | 2-wire |
| Outputs in this family | 2-wire only |
| Lead / connector | See datasheet |
| Supply voltage | 10-28 V DC |
|---|---|
| Protection rating | IP64 |
| Version | Standard version |
| Profile letter | G (cylinder-groove fit) |
| Profiles in this family | G, H |
| Detects | Piston magnet ring inside the cylinder |
Every EMS is 2-wire on a 10-28 V DC supply; there is no NPN / PNP version. IP64 as standard. Order the RW version where coolant, washdown or constant cable flexing is present. Switching distance, response time, current rating, voltage drop, LED behaviour, contact life, weight and dimensions are not published in our data set — ask us and we will confirm from the factory datasheet.
Model Code: Airtac EMSG G-Type Electronic Sensor EMSG-C12
| EMS | Mini electronic cylinder switch — electronic (solid-state), miniature build. |
|---|---|
| G | Profile letter: the mounting / groove type that fits a particular cylinder body. This family offers G, H. It is a fit code, not a performance grade. |
| 12 | See datasheet. 020 / 030 / 050 / 100 are 2 / 3 / 5 / 10 m flying leads; M08 and M12 are M8 / M12 connector versions. |
| (blank) | Standard version. |
We do not hold the full profile-to-cylinder-series table, so confirm the profile letter against your cylinder model before ordering — send us the cylinder part number and we will check the fit.
