Airtac GC FRL Unit GC400C15C1

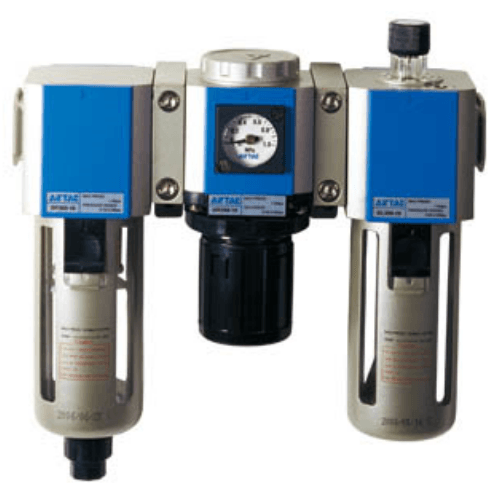

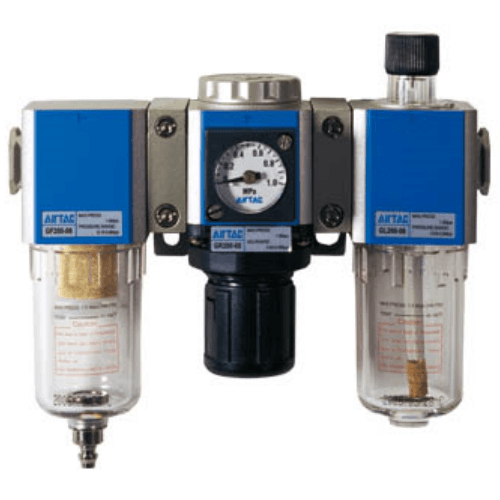

The AirTAC Airtac GC FRL Unit GC400C15C1 is a genuine G-series three-unit F.R.L. combination: a separate filter, a separate regulator and a separate lubricator assembled as one air-preparation station. It has See datasheet ports, a 40 µm element, a differential-pressure drain and regulates 0.15 - 0.9 MPa (20 - 130 psi).
- TypeF.R.L. combination (3 units)
- Port sizeSee datasheet
- Regulating range0.15 - 0.9 MPa (20 - 130 psi)
- Filtering grade40 µm
- DrainDifferential-pressure drain
- Bowl materialPC
- Pressure gaugeFitted
- ThreadPT
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the Airtac GC FRL Unit GC400C15C1
GC400C15C1 is a GC-series three-piece F.R.L. combination from AirTAC: a separate air filter, pressure regulator and lubricator supplied as one set. The size 400 body is ported PT1/2, the filter bowl uses the default differential-pressure drain, and the standard 40 um element removes water and particulate. The C1 code adds a round external gauge scaled in MPa. Regulator adjustment range is 0.15-0.9 MPa (20-130 psi) with the differential-pressure drain, maximum working pressure is 1.0 MPa (145 psi), and the 400-size bowls are polycarbonate, rated for -5 to 70 C.
This is a genuine AirTAC part. The G-series F.R.L. comes in sizes 200, 300, 400 and 600 with a choice of ports, PT (standard), G or NPT threads, differential-pressure, automatic or manual drains, 40 um or 5 um (W) elements, gauge options and an optional check valve. Flow is published as curves rather than a single rating, so we confirm the datasheet and flow figures for your application on request.
Airtac GC FRL Unit GC400C15C1 Technical Specifications
| Model | Airtac GC FRL Unit GC400C15C1 |
|---|---|
| Series | GC400 F.R.L. combination |
| Composition | Filter + regulator + lubricator (3 units) |
| Port size | See datasheet (PT thread) |
| Filtering grade | 40 µm |
| Regulating range | 0.15 - 0.9 MPa (20 - 130 psi) |
| Pressure type | Standard type |
| Fluid | Compressed air |
|---|---|
| Max. working pressure | 1.0 MPa (145 psi) |
| Temperature range | -5 to +70 °C (unfreeze) |
| Drain type | Differential-pressure drain |
| Bowl material | PC |
| Pressure gauge | Fitted — factory standard, Factory standard scale |
| Reflux valve | Not fitted |
Specifications follow the official AirTAC G-series air-preparation data. The regulating band is set by the drain type: automatic and differential-pressure drains regulate 0.15 - 0.9 MPa, a manual drain regulates 0.05 - 0.9 MPa. Standard type, regulating 0.15 - 0.9 MPa (20 - 130 psi). The combination has no separate bracket code — the three units couple together with their own mounting hardware. Flow curves, weight and outline dimensions are not published in our data set — ask us and we will confirm from the factory datasheet.
Model Code: Airtac GC FRL Unit GC400C15C1
| GC400 | G-series F.R.L. combination, 400 body — sets the port range. |
|---|---|
| C1 | Port size See datasheet. This body offers 10 = PT3/8", 15 = PT1/2". |
| (blank) | Drain: Differential-pressure drain — this also sets the regulating band (0.15 - 0.9 MPa (20 - 130 psi)). |
| (blank) | Standard type. Blank is standard, L is the low-pressure type. |
| (blank) | Pressure gauge fitted (blank). |
| (blank) | Gauge shape: Factory standard. C is round, F is square. |
| (blank) | Gauge scale: Factory standard. 1 is MPa, 2 is psi, 3 is bar. |
| (blank) | Filtering grade 40 µm. Only 40 µm (blank) and 5 µm (W) exist. |
| (blank) | PT thread. PT is the default; G is BSPP and T is NPT. |
| (blank) | No reverse-flow valve (the default). |
Field order is size, port, drain, type, gauge, shape, scale, grade, thread, reflux — there is no bracket position on a combination. Constituent units, orderable separately as spares: GF400-C1 filter, GR400-C1 regulator and GL400-C1 lubricator.
Size Class & How It Differs From GFC
- GC200PT1/8" - PT1/4"
- GC300PT1/4" - PT1/2"
- GC400PT3/8" - PT1/2"
- GC600PT3/4" - PT1"
A GC is three separate units, so the filter and the regulator can each be serviced or replaced on their own. A GFC is the two-unit set, where filtering and regulating share one body — shorter, but the two functions come as one part. Both filter, regulate and lubricate.
| This model | GC400 · See datasheet · 40 µm |
|---|---|
| One size down | GC300 |
| One size up | GC600 |
| Two-unit equivalent | GFC400-C1 |
| Build order | Filter → regulator → lubricator |
Where the Airtac GC FRL Unit GC400C15C1 Is Used
Injection molding machine auxiliaries
Conditions the air feeding core-pull and ejector circuits on an injection molding machine, with the MPa gauge giving operators a direct read of set pressure.
Control panel air on process skids
Prepares instrument and actuator air on a process skid panel, where the round MPa gauge lets technicians verify the regulator setting during commissioning.
Textile loom plant ring main
Feeds loom actuation circuits from a textile plant ring main; the differential-pressure drain and standard 40 um element suit a central supply that is checked on rounds.
Is the Airtac GC FRL Unit GC400C15C1 the Right Station?
Pick the size (200/300/400/600) and port for your line; this is the size 400 unit with PT1/2 ports in standard PT thread, with G (BSPP) and NPT available as catalogue variants. The differential-pressure drain is the default and needs no operator action to set; automatic or manual drain codes are alternatives if your maintenance routine calls for them. The 40 um element is standard, with 5 um (W) for finer filtration. The C1 gauge code gives an external round gauge with an MPa scale; square-gauge and psi/bar scale options exist in the series. Flow is published as curves, not a single rating, so ask us to confirm sizing against your application before ordering.
Quick checklist
- ✓ Body size for your peak flow (See datasheet here)
- ✓ Element 40 µm or 5 µm
- ✓ Drain sets the regulating band
- ✓ Gauge fitted, shape and scale
- ✓ Three-unit (GC) or two-unit (GFC) layout
- ✓ Oil mist acceptable downstream
Installation & Maintenance Notes
- check Install with the airflow arrow: filter first, lubricator last.
- check Mount vertically, bowls down.
- check Keep inlet pressure at or below 1.0 MPa (145 psi).
- check Adjust only within 0.15 - 0.9 MPa (20 - 130 psi).
- check Drain condensate before the bowl fills; check the oil level.
- check Keep the station above freezing (-5 to +70 °C, unfreeze).
The PC bowls must not be cleaned with solvents — wipe them with a dry cloth. The lubricator adds an oil mist downstream of the regulator. If any branch of the line must stay oil-free, take that branch off before the lubricator, or use a GR400-C1 regulator with a GF400-C1 filter on that branch.
Airtac GC FRL Unit GC400C15C1 FAQ
Flow for the G-series is published as curves rather than a single rated figure, so we do not state a number on this page. Give us your operating conditions and we will confirm the datasheet and flow curve for GC400C15C1 on request before you order.
C selects the optional external round gauge and 1 is the MPa scale, so this set arrives with an MPa-reading round gauge fitted. Other scale (psi, bar) and square-gauge options are listed in the series, as are versions without a gauge.
