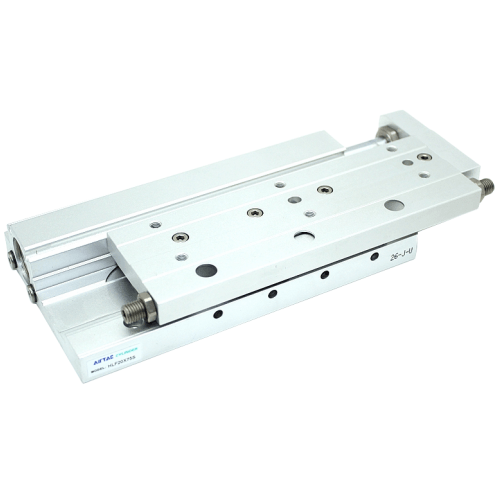

Airtac HLF Ultra-Slim Precision Slide Table Cylinder HLF16X10S
The AirTAC Airtac HLF Ultra-Slim Precision Slide Table Cylinder HLF16X10S is a genuine HLF slide-table cylinder, 16 mm bore: a double-acting dual-rod air cylinder integrated with a low-height cross-roller guide so the table travels straight with high rigidity and low deflection. It delivers about 80.4 N of push at 0.5 MPa. A floating joint spares the rod from side torque; the magnet is fitted as standard.
- TypeSlide-table, double acting
- Guidelow-height cross-roller guide
- Bore16 mm
- Push thrust @0.5 MPa80.4 N
- Operating pressure0.15 - 0.7 MPa (22 - 100 psi)
- Port sizeM5x0.8
- CushionBumper
- Magnet / sensorStandard; CMSH/DMSH/EMSH
- ThreadPT
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the Airtac HLF Ultra-Slim Precision Slide Table Cylinder HLF16X10S
The AirTAC HLF16X10S is a double-acting dual-rod slide-table cylinder that integrates a low-height cross-roller linear guide directly into the body. The cross-roller guide delivers high rigidity and precise straight-line travel while keeping the overall profile low, making it ideal for tight mounting envelopes. A floating joint spares the dual rods from side torque so the moving table stays accurate, and the dual-rod design doubles the thrust for a compact bore 16 mm package at a 10 mm stroke.
This is a genuine AirTAC part with a standard sintered NdFeB magnet for position sensing; compatible sensor switches include CMSH, DMSH, and EMSH series mounted in the body slots. We confirm thrust values, overall dimensions, and allowable load/moment data from the AirTAC datasheet or the on-page spec table on request.
Airtac HLF Ultra-Slim Precision Slide Table Cylinder HLF16X10S Technical Specifications
| Model | Airtac HLF Ultra-Slim Precision Slide Table Cylinder HLF16X10S |
|---|---|
| Type | Slide-table cylinder, double acting, dual rod |
| Series / guide | HLF (low-height cross-roller guide) |
| Bore | 16 mm |
| Push thrust @0.5 MPa | 80.4 N |
| Port size | M5x0.8 (PT thread) |
| Fluid | Air, filtered to 40 um |
|---|---|
| Operating pressure | 0.15 - 0.7 MPa (22 - 100 psi) |
| Proof pressure | 1.2 MPa (175 psi) |
| Temperature | -20 to 70 C |
| Speed range | 50 - 500 mm/s (meter-out) |
| Cushion | Bumper |
| Magnet / sensor | Standard; CMSH, DMSH, EMSH |
Specifications follow the official AirTAC HL slide-table data. Max working pressure is 0.7 MPa. The table rides on an integrated linear guide — do not apply strong impact or large moment. Allowable load and moment are published as tables and curves, and overall dimensions vary per stroke — ask us and we confirm from the datasheet.
How to choose
Bore 16 mm gives moderate thrust in the HLF series; choose a larger bore if your application needs more push and a smaller bore if compactness matters most. The HLF sub-family is the right pick when you need cross-roller precision and rigidity but must minimize the installed height, versus HLS for maximum rigidity, HLQ for ball-bearing anti-rust operation, or HLH for miniature roller-ball straightness. The 10 mm stroke suits very short travel pick-and-place or stopper duties.
Thread is PT as supplied; G and NPT thread options are available by specifying the G or T suffix. Operating pressure for bore 16 is 0.15-0.7 MPa (22-100 psi), never exceeding 0.7 MPa. Allowable load, moment, and deflection values are published as tables and curves in the datasheet; contact us to confirm sizing for your specific mounting orientation and payload.
Applications
Short-Stroke Pick-and-Place
Use the 10 mm stroke HLF16X10S to lift or shift small components between adjacent stations where a low-height cross-roller guide keeps the head compact and repeatable.
Gripper Traverse Stage
Mount a gripper on the table face for a short in-and-out traverse; the cross-roller guide holds deflection low so the gripper stays parallel to the workpiece.
Low-Profile Stopper
In a tight vertical space, the reduced HLF body height lets the slide table act as a precision stopper or positioning fence without crowding the line.
FAQ
What is the difference between HLF and HLS guide type?
HLF uses the same cross-roller guide as HLS but integrates it into a low-height body with two port sets, making it the choice when you need cross-roller rigidity and precision in a reduced vertical envelope. HLS gives maximum rigidity and load capacity in a standard-height body.
Can I exceed 0.7 MPa operating pressure on this bore 16 model?
No. Maximum working pressure is 0.7 MPa (100 psi); the operating range for bore 16 is 0.15-0.7 MPa (22-100 psi). Proof pressure is 1.2 MPa for validation only, not for continuous operation. Meter-out speed control should keep travel between 50 and 500 mm/s.
