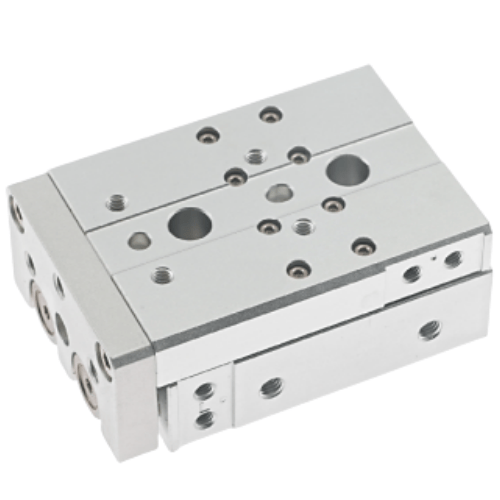

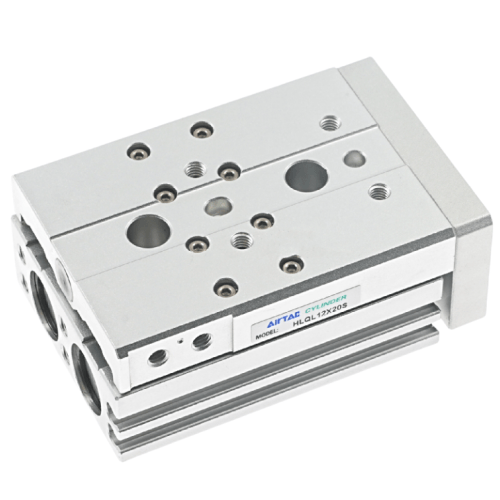

Airtac HLQL Dual Axis Precision Slide Table Cylinder HLQL25X75SAF
The AirTAC Airtac HLQL Dual Axis Precision Slide Table Cylinder HLQL25X75SAF is a genuine HLQ slide-table cylinder, 25 mm bore: a double-acting dual-rod air cylinder integrated with a ball-bearing guide so the table travels straight with high rigidity and low deflection. It delivers about 378 N of push at 0.5 MPa. This is the symmetrical version. A floating joint spares the rod from side torque; the magnet is fitted as standard.
- TypeSlide-table, double acting
- Guideball-bearing guide
- Bore25 mm
- Push thrust @0.5 MPa378 N
- Operating pressure0.15 - 0.7 MPa (22 - 100 psi)
- Port size1/8"
- CushionBumper (+ shock-absorber option)
- Magnet / sensorStandard; CMSH/DMSH/EMSH
- ThreadPT
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the Airtac HLQL Dual Axis Precision Slide Table Cylinder HLQL25X75SAF
The AirTAC HLQL25X75SAF is a symmetrical ball-bearing slide-table cylinder combining an air cylinder with a precision linear guide for straight moving-table travel. The symmetrical dual-rod layout doubles thrust and a floating joint prevents side torque on the rods. With bore 25 mm and stroke 75 mm this unit delivers higher thrust for larger payloads, and the ball-bearing guide provides anti-rust and dust-proof performance in harsh settings.
This genuine AirTAC part includes a standard magnet compatible with CMSH, DMSH, and EMSH sensor switches in the body slots. An adjustable rubber stopper is fitted on the retraction side for controlled cushioning at that end. We verify thrust, dimensions, allowable load, moment, and deflection from the AirTAC datasheet or on-page spec table on request.
Airtac HLQL Dual Axis Precision Slide Table Cylinder HLQL25X75SAF Technical Specifications
| Model | Airtac HLQL Dual Axis Precision Slide Table Cylinder HLQL25X75SAF |
|---|---|
| Type | Slide-table cylinder, double acting, dual rod |
| Series / guide | HLQL (ball-bearing guide) |
| Bore | 25 mm |
| Push thrust @0.5 MPa | 378 N |
| Port size | 1/8" (PT thread) |
| Fluid | Air, filtered to 40 um |
|---|---|
| Operating pressure | 0.15 - 0.7 MPa (22 - 100 psi) |
| Proof pressure | 1.2 MPa (175 psi) |
| Temperature | -20 to 70 C |
| Speed range | 50 - 500 mm/s (meter-out) |
| Cushion | Bumper; shock-absorber / adjustable-stopper options |
| Magnet / sensor | Standard; CMSH, DMSH, EMSH |
Specifications follow the official AirTAC HL slide-table data. Max working pressure is 0.7 MPa. The table rides on an integrated linear guide — do not apply strong impact or large moment. Allowable load and moment are published as tables and curves, and overall dimensions vary per stroke — ask us and we confirm from the datasheet.
How to choose
Bore 25 suits applications needing higher thrust from a larger piston area - a bigger bore gives more push, confirmed in the thrust table rather than estimated here. The HLQL ball-bearing guide is selected for anti-rust and dust-proof duty, and the symmetrical body balances load distribution. Stroke 75 mm must be within the bore 25 range in the datasheet. The AF adjuster places a rubber stopper on the retraction side only; choose A for both ends or B-series shock absorbers where impact energy is higher (B not available on bore 6). Thread is PT; G or NPT variants exist. Load, moment, and kinetic-energy limits are published as tables and curves - contact us for confirmed values.
Applications
Pick-and-Place Head
Positions a vacuum or gripper head precisely over pick and place locations with 75 mm of dust-proof ball-bearing guided stroke.
Tooling Plate Shift
Translates a symmetrical tooling plate between machining or inspection stations using the dual-rod guide for low-deflection repeatability.
Pneumatic Stopper Gate
Extends and retracts a stop gate at a conveyor junction, relying on the retraction-side rubber stopper for soft end contact.
FAQ
What does the AF adjuster code mean on this model?
AF indicates an adjustable rubber stopper fitted on the retraction side only. The extension side uses the standard bumper. If cushioning is needed on both ends, select the A option; for shock absorption on the retraction side choose BF.
How are load and moment limits confirmed for HLQL25X75SAF?
Allowable load, moment, and kinetic energy are published as tables and deflection curves in the AirTAC datasheet. We do not state a single figure here because values depend on mounting orientation and stroke. Contact us and we will confirm the exact ratings from the published table for your application.
