Airtac MBL Aluminum Alloy Mini Cylinder MBL25X250-CA

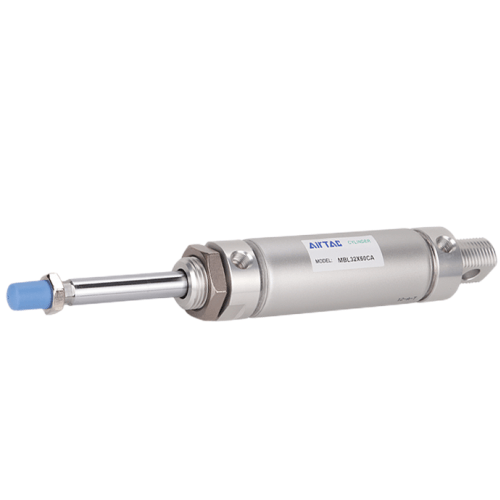

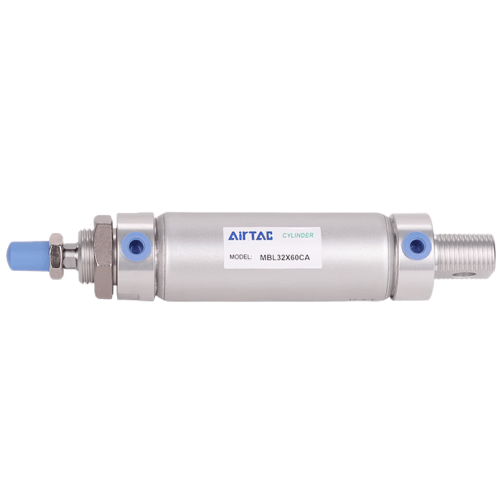

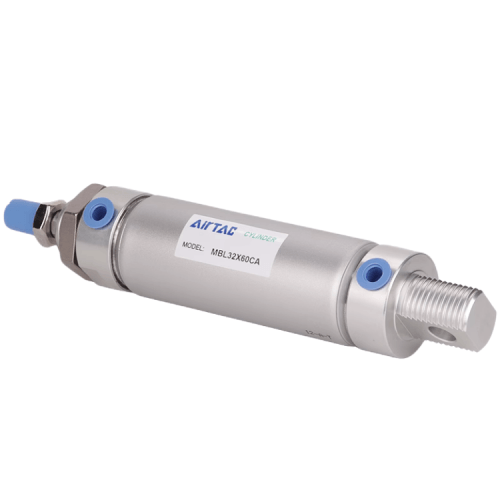

The AirTAC Airtac MBL Aluminum Alloy Mini Cylinder MBL25X250-CA is a genuine double-acting aluminum-barrel mini round cylinder with a Ø25mm bore and 250mm stroke, G1/8 air ports and a fixed rubber bumper. Its compact riveted body suits push, hold and clamp motion in tight machine spaces.
- BoreØ25 mm
- Stroke250 mm
- Port sizeG1/8
- Acting typeDouble acting
- Rod threadM10×1.25
- CushionRubber bumper (MBLC variant: adjustable air cushion)
About the Airtac MBL Aluminum Alloy Mini Cylinder MBL25X250-CA
The AirTAC MBL25X250-CA is a compact double-acting aluminum mini round cylinder engineered for tight machine spaces. It generates 245 N of push force and 206 N of pull force at 0.5 MPa, making this 250 mm stroke unit well-suited for mid-range linear actuation. The riveted rolling-packed barrel design keeps the body light and small, fundamentally differing from heavy tie-rod cylinders because it is built as a permanently crimped assembly rather than a rebuildable housing.
This specific SKU features a CA pivot (clevis) back cover, allowing the cylinder body to swing freely on a pin to accommodate arcing or angular loads during movement. It lacks the -S magnet suffix, meaning it cannot accept a CMSG, DMSG, or EMSG position sensor switch. Internally, a heterogeneous two-way piston seal retains grease for long service life, while the Ø10 mm carbon steel piston rod features 20 μm hard-chrome plating to resist wear and corrosion.
Airtac MBL Aluminum Alloy Mini Cylinder MBL25X250-CA Technical Specifications
| Model | Airtac MBL Aluminum Alloy Mini Cylinder MBL25X250-CA |
|---|---|
| Series | MBL aluminum-barrel mini round cylinder |
| Bore size | Ø25 mm |
| Stroke | 250 mm |
| Acting type | Double acting |
| Port size | G1/8 |
| Rod thread | M10×1.25 |
| Fluid | Air (filtered by 40µm element) |
|---|---|
| Operating pressure | 0.15 – 1.0 MPa |
| Proof pressure | 1.5 MPa |
| Temperature | -20 to +70 °C |
| Speed range | 30 – 800 mm/s |
| Cushion | Rubber bumper (MBLC variant: adjustable air cushion) |
| Max stroke | Up to 500 mm |
Specifications follow the official AirTAC MBL series datasheet. Confirm against the product label before installation. Standard stroke to 500 mm (special order to 800 mm). Thread options: PT / G / NPT.
Theoretical Output Force (Ø25mm)
| Pressure | Push force | Pull force |
|---|---|---|
| 0.5 MPa | 245 N | 206 N |
| 0.7 MPa | 344 N | — |
| Max (@1.0 MPa) | 50 kgf | |
Actual usable force is lower than theoretical due to friction and back-pressure. Size with a safety margin.
Model Code: Airtac MBL Aluminum Alloy Mini Cylinder MBL25X250-CA
| MBL | Aluminum-barrel mini round cylinder, double acting. |
|---|---|
| 25 | Bore size in mm. |
| ×250 | Stroke length in mm. |
| -S | Optional built-in magnet for sensor position sensing. |
Related variants: MBLC (adjustable cushion), MBLD (double rod), MBLJ (adjustable stroke), MSBL/MTBL (single acting).
Where the Airtac MBL Aluminum Alloy Mini Cylinder MBL25X250-CA Is Used
PCB Conveyor Diversion
Pushes lightweight routing gates on SMT lines using 245 N at 0.5 MPa, where the CA pivot absorbs slight angular misalignment common in conveyor frames.
Carton Flap Folding
Folds small cardboard flaps during case packing, utilizing the 250 mm stroke to clear tall carton profiles before the sealing station.
Sample Tube Transfer
Moves diagnostic sample racks between testing modules, benefiting from the lightweight aluminum body in high-speed lab automation.
Is the Airtac MBL Aluminum Alloy Mini Cylinder MBL25X250-CA the Right Cylinder?
Stepping down to the 20 mm bore drops the 0.5 MPa push force to 157 N, whereas stepping up to the 32 mm bore raises it to 402 N. If your cycle ends violently and the fixed rubber bumper causes shock, switch to the MBLC variant for an adjustable air cushion. Because this is a 250 mm stroke on a small Ø10 mm rod, long unsupported strokes have low side-load tolerance; an external guide or the MBLD double-rod type is recommended to prevent rod-bearing bending. Note that the rubber bumper only softens end-of-stroke impact and does not hold the load—if air pressure is lost or the valve is centred, the rod will drift and drop, requiring an external rod lock or pilot-operated check valve to maintain position. Replacement match: 25 mm bore, 250 mm stroke, G1/8 port, PT thread, CA back cover, no magnet.
Quick checklist
- ✓ Required force at your working pressure
- ✓ Stroke and mounting space
- ✓ Port/thread type (PT/NPT/G)
- ✓ Magnet (-S) for sensors?
- ✓ Side load — consider a guided cylinder
Installation & Maintenance Notes
- check Use clean air filtered to 40µm or finer.
- check Keep within 0.15 – 1.0 MPa operating pressure.
- check Avoid side load on the piston rod.
- check Adjust end cushion screws for smooth stops.
- check Use correct mounting accessory (LB / FA / SDB) and back cover (CA pivot / U flat-end).
- check Installation by qualified personnel per AirTAC docs.
Airtac MBL Aluminum Alloy Mini Cylinder MBL25X250-CA FAQ
At 0.5 MPa, this 25 mm bore cylinder provides 245 N push and 206 N pull force. At 0.7 MPa, the push force is 343 N, with a theoretical maximum of 50 kgf at 1.0 MPa. The operating speed ranges from 30-800 mm/s.
No. This base MBL model uses a fixed rubber bumper, not an adjustable air cushion (you must choose the MBLC variant for that). Additionally, because this SKU lacks the -S suffix, it has no built-in magnet and cannot accept CMSG, DMSG, or EMSG sensor switches.
