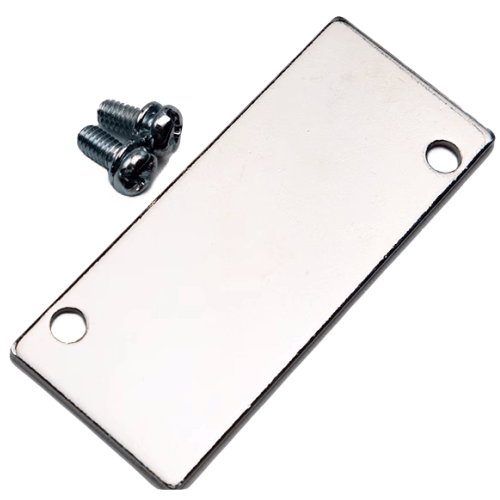

Airtac P-3V-M Cover Plate P-3V100M-R2
2、Features centralized intake/exhaust ports and unified wiring layout to streamline troubleshooting processes and enhance maintenance efficiency;
3、Modular design with exceptional flexibility and scalability, allowing arbitrary combination or expansion of connected directional control valves according to operational requirements;
Category: Cover Plates , Brand: Airtac , Series: P-3V-M
AirTAC P-3V-M Cover Plate P-3V100M-R2 Technical Specifications
- Model: P-3V100M-R2
- Type: Valve manifold cover plate (P-3V series)
- Compatible base: For 100mm valve bank systems
- Material: Anodized aluminum alloy (AL6063-T5)
- Surface hardness: ≥15HV (hard anodized treatment)
- Port configuration: 10 stations (5 inlet/outlet pairs)
- Thread specification: G1/8 (ISO228 standard)
- Pressure rating: 0.05–1.0 MPa
- Operating temperature: -20℃ to 120℃
- Surface roughness: Ra ≤1.6μm
- Weight: 278g ±5g
- Dimensions: 100mm(L) × 48mm(W) × 22mm(H)
- Mounting torque: 1.2–1.5 N·m (for M5 fasteners)
- Corrosion resistance: 96hrs salt spray test passed
Structural reinforcement plate designed for multi-valve manifold systems, featuring precision-machined flow channels and integrated O-ring grooves. The micro-arc oxidation surface treatment enhances wear resistance while maintaining thermal conductivity. Includes built-in alignment pins for error-proof assembly.
- Modular pneumatic control stations
- Automated assembly line manifolds
- CNC machine tool pneumatic clusters
- Semiconductor wafer handling systems
- Beverage filling plant valve banks
Installation protocol:
Apply thread sealant (LOCTITE 577 recommended) on port connections.
Tighten bolts in cross pattern sequence to 1.3N·m torque.
Perform pressure test at 1.2x operating pressure after installation.
