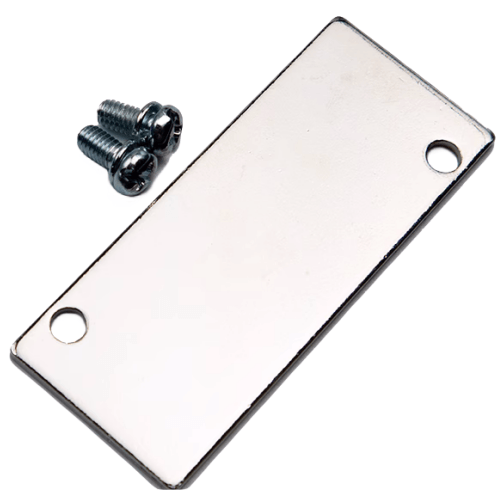

Airtac P-3V-M Cover Plate P-3V200M-R2
2、Features centralized intake/exhaust ports and unified wiring layout to streamline troubleshooting processes and enhance maintenance efficiency;
3、Modular design with exceptional flexibility and scalability, allowing arbitrary combination or expansion of connected directional control valves according to operational requirements;
Category: Cover Plates , Brand: Airtac , Series: P-3V-M
AirTAC P-3V-M Cover Plate P-3V200M-R2 Technical Specifications
- Model: P-3V200M-R2
- Type: Aluminum alloy cover plate for valve manifold systems
- Material: 6063-T5 aluminum with anodized surface treatment
- Compatible valve series: P-3V200M pneumatic valve manifold blocks
- Port configuration: Matches ISO 15407-2 standard subplate dimensions
- Mounting hole spacing: 180mm center-to-center (for manifold connection)
- Seal material: NBR rubber gasket (included)
- Surface roughness: Ra ≤3.2μm
- Operating pressure: 0.2–0.8 MPa (matches valve specifications)
- Temperature range: -20℃ to 80℃
- Weight: 850g ±5%
- Dimensions: 200mm(L) × 80mm(W) × 20mm(H)
- Mounting torque: 1.2–1.5 N·m (for M5 fasteners)
- Protection rating: IP40 (when installed with compatible valves)
Heavy-duty end plate designed for modular pneumatic valve manifolds, featuring precision-machined alignment pins and leak-proof sealing surfaces. The anodized coating provides corrosion resistance in humid environments while maintaining electrical insulation properties. Includes integrated mounting slots for DIN rail compatibility.
- Modular pneumatic control systems in assembly lines
- Robotic actuator cluster valve installations
- Packaging machinery manifold consolidation
- Semiconductor manufacturing equipment
- Food processing plant pneumatic control cabinets
Installation protocol:
Clean sealing surfaces with isopropyl alcohol before assembly.
Use star-pattern tightening sequence for even pressure distribution.
Maximum permissible lateral load: 50N (per mounting point).
- Designed for use with P-3V200M series valves (5/3-way or 5/2-way configurations)
- Requires M5×12mm stainless steel screws (grade 8.8 or higher)
- Not compatible with P-3V100M series due to dimensional differences
| Property | Property Value |
|---|---|
| sku | P-3V200M-R2 |
