Airtac P-400M Repair Kit P-400M-R2
The AirTAC Airtac P-400M Repair Kit P-400M-R2 is a genuine blank plate kit for the 400M manifold. It seals an unused valve station so the base stays leak-tight, letting you buy a longer manifold now and fill the spare stations later.
- Part typeManifold blank plate kit
- Manifold400M
- Kit contentsOne blank plate and its screw
- Order codeR2
About the Airtac P-400M Repair Kit P-400M-R2

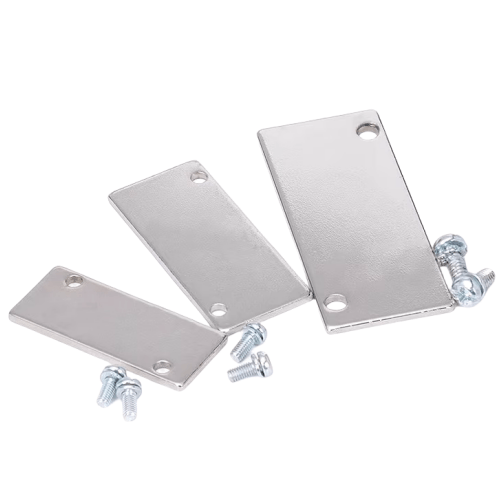

The P-400M-R2 is a blank plate kit for the AirTAC 400M manifold, the base built for 400-body valves. When a station on the base is empty, the common 1/2 inch supply would leak straight out of it. This plate closes that opening so the manifold stays sealed and the fitted valves keep working exactly as before. The kit contains the plate and its screw - nothing else is needed for one station.
This part is not a valve and it does not change how any fitted valve behaves. It does one job: make an unused station air-tight. Because the 400M base accepts up to 8 stations, the plate is also the tool that turns spare stations into a real expansion plan - buy the longer base now, blank what you do not use, and unblank it later by simply screwing a 4A400 air-pilot or 4V400 / 5V400 solenoid valve onto the position.
Airtac P-400M Repair Kit P-400M-R2 Technical Specifications
| Model | Airtac P-400M Repair Kit P-400M-R2 |
|---|---|
| Part type | Manifold blank plate kit |
| Manifold series | 400M |
| Fits valve bodies | 4A400 air pilot and 4V400 / 5V400 solenoid |
| Kit contents | One blank plate and its screw |
| Fluid | Air (filtered by 40µm element) |
|---|---|
| Temperature | -20 to +70 °C |
| Replaces | The blank plate on any 400M station |
| Sold as | One kit per station |
This is a service part for the 400M manifold, not a valve. Check the manifold body size stamped on your base before ordering: a 400M blank plate does not fit a different body size.
Model Code: Airtac P-400M Repair Kit P-400M-R2
| P | Kit / service part. |
|---|---|
| 400M | For the 400M manifold. |
| R2 | R2 = blank plate kit (plate + screw). |
How a Manifold Bank Goes Together
- check One PT1/2 inlet feeds every station, so you run a single supply drop.
- check Each station takes one 400-body valve; the A and B work ports stay on the valve.
- check Exhausts collect in the base — silence the bank once instead of per valve.
- check Any station you are not using yet takes a P-400M-R2 blank plate.
- check Station seals are a serviceable part: P-400M-R1.
Where the Airtac P-400M Repair Kit P-400M-R2 Is Used
Staged automotive weld cell
A weld cell that will gain clamping cylinders next year can take a full 8-station 400M base today, with the unused positions sealed by P-400M-R2 plates until the new 4V400 solenoid valves are screwed on.
Bottling line actuator bank
Bottle-rinser and capper actuator banks on 1/2 inch ports often lose a valve during rebuild. A P-400M-R2 plate blanks that station so the rest of the bank keeps running on the common supply.
Press shop control panel
A panel designer who leaves two spare positions on an 8-station 400M manifold blanked with this kit buys future I/O for the price of two plates instead of a base swap and re-piping.
Is the Airtac P-400M Repair Kit P-400M-R2 the Right Part?
Confirm the fit by the manifold itself: the base must be a 400M - the largest of the range, with a 1/2 inch common inlet and 1/2 inch station ports. If your bar carries 200 or 300 series valves, this plate is the wrong size and the equivalent P-200M-R2 or P-300M-R2 is what you need. Check the valve line too: a 3V400 or 7V400 manifold uses its own prefixed kit, so match the prefix if your base has one.
Ordering is per station: one P-400M-R2 blanks one empty position. A base bought with 4 spare positions needs 4 kits. If you are still choosing the base length, remember each 400M station adds 35 mm to the overall length, so decide how many spares you genuinely expect to commission before you buy.
Quick checklist
- ✓ Valve body size (400) matches the base
- ✓ One kit covers one station
- ✓ Body size stamped on your manifold
Airtac P-400M Repair Kit P-400M-R2 FAQ
One kit blanks exactly one station. Count the empty positions on your 400M manifold and order that many kits - 3 spare stations means 3 kits. Each kit is a plate plus its screw; there are no seals or other parts involved. The 400M base tops out at 8 stations, so 8 is the most you would ever blank on one base.
Check the base, not the valves. The P-400M-R2 suits the 400M manifold only: that base has a 1/2 inch common inlet, 1/2 inch station ports, an overall length of 61 mm plus 35 mm per station, and carries 4A400 air-pilot or 4V400 / 5V400 solenoid valves. Smaller 100M, 200M and 300M bases use their own blank plate kits and this one will not seal them.
