Airtac P-6V Blind Cover P-6V100M-R2
The AirTAC Airtac P-6V Blind Cover P-6V100M-R2 is a genuine blank plate kit for the 100M manifold. It seals an unused valve station so the base stays leak-tight, letting you buy a longer manifold now and fill the spare stations later.
- Part typeManifold blank plate kit
- Manifold100M
- Kit contentsOne blank plate and its screw
- Order codeR2
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the Airtac P-6V Blind Cover P-6V100M-R2
The P-6V100M-R2 is a blank plate kit for the AirTAC 6V100M manifold base. When a station on the base is left without a valve, the open port would vent your supply straight to atmosphere. This plate closes that single unused station so the rest of the bank stays pressurised and leak-tight.
The kit contains exactly the blank plate and its fixing screw - nothing else. It is a sealing part, not a valve: fitting it does not change how any of the valves on the base behave, it simply removes the one open station from the circuit.
Airtac P-6V Blind Cover P-6V100M-R2 Technical Specifications
| Model | Airtac P-6V Blind Cover P-6V100M-R2 |
|---|---|
| Part type | Manifold blank plate kit |
| Manifold series | 100M |
| Fits valve bodies | 4A100 air pilot and 4V100 / 5V100 solenoid |
| Kit contents | One blank plate and its screw |
| Fluid | Air (filtered by 40µm element) |
|---|---|
| Temperature | -20 to +70 °C |
| Replaces | The blank plate on any 100M station |
| Sold as | One kit per station |
This is a service part for the 100M manifold, not a valve. Check the manifold body size stamped on your base before ordering: a 100M blank plate does not fit a different body size.
Model Code: Airtac P-6V Blind Cover P-6V100M-R2
| P | Kit / service part. |
|---|---|
| 6V100M | For the 100M manifold of the 6V valve line. |

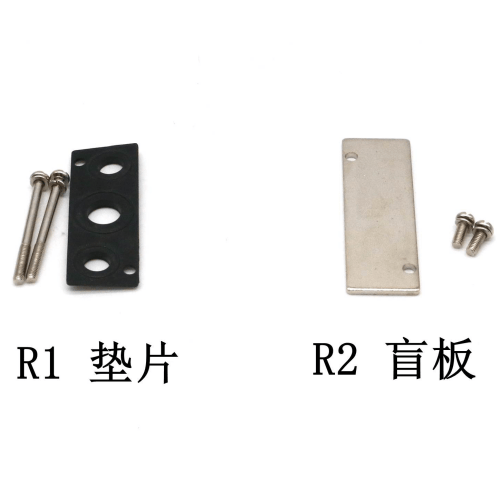

| R2 | R2 = blank plate kit (plate + screw). |
How a Manifold Bank Goes Together
- check One PT1/4 inlet feeds every station, so you run a single supply drop.
- check Each station takes one 100-body valve; the A and B work ports stay on the valve.
- check Exhausts collect in the base — silence the bank once instead of per valve.
- check Any station you are not using yet takes a P-100M-R2 blank plate.

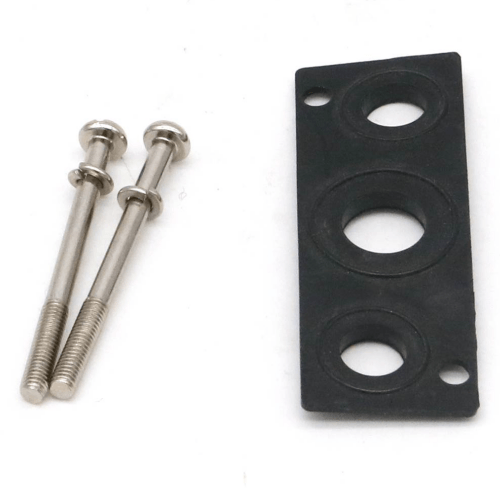

- check Station seals are a serviceable part: P-100M-R1.
Where the Airtac P-6V Blind Cover P-6V100M-R2 Is Used
Packaging machine valve bank
A carton sealer runs four 6V100 valves on a six-station 6V100M base. Two P-6V100M-R2 plates close the spare stations so the bank holds pressure until the second glue head is added.
Pick-and-place cell staged for growth
An integrator pipes one supply line to a 6V100M base for a pick-and-place gripper panel, valves only the stations in use now, and blanks the rest - expanding later means bolting on a valve, not re-plumbing.
Control panel retrofit tidy-up
When a machine rebuild retires two of six valve functions, removing the valves leaves open ports. A plate on each retired station keeps the remaining 6V100 circuit sealed without swapping the base for a shorter one.
Is the Airtac P-6V Blind Cover P-6V100M-R2 the Right Part?
Confirm the fit by the manifold, not the valves: this kit is made for the 6V100M base, so check the code stamped on your manifold bar or match it to the 6V100 valve line the base was bought for. A 100-body plate will not seal a 200, 300 or 400 manifold, so never substitute across body sizes.
Order one kit per station you want to close. If your base has six stations and only four are valved, you need two plates; a full base bought for future expansion with all stations spare needs a plate for every empty one.
Quick checklist
- ✓ Valve body size (100) matches the base
- ✓ One kit covers one station
- ✓ Body size stamped on your manifold
Airtac P-6V Blind Cover P-6V100M-R2 FAQ
It is AirTAC's blank plate kit for the 6V100M manifold base. The kit is a plate plus its screw, and it seals one station that has no valve fitted. Use it whenever a 6V100M base has more stations than valves - for spare capacity, a partly built machine, or a station retired during a retrofit.
One kit closes exactly one station, so count your empty stations and order that many. A six-station 6V100M base with three valves fitted needs three P-6V100M-R2 kits to seal the bank completely.
