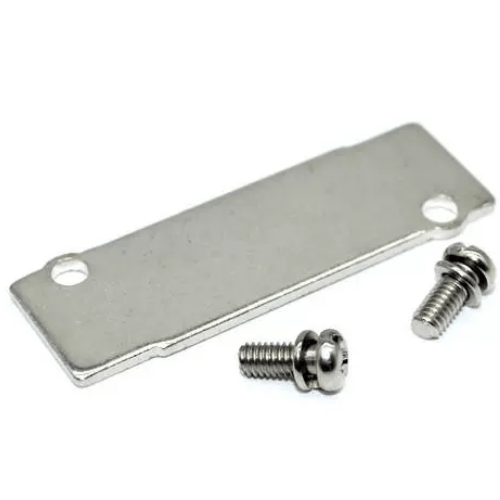

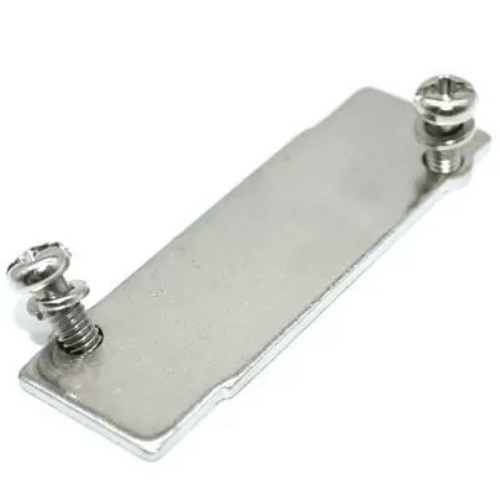

Airtac P-7V Blank Plate Repair Kit P-7V200M-R2
2. Internal exhaust structure collects residual air and centrally discharges through R/S ports;
3. Aluminum alloy die-cast body with optimized internal cavity design to enhance flow capacity;
4. Available in threaded or quick-connect versions, compatible with base-mounted valve group integration for space-saving installation.
Category: Cover Plate | Brand: AirTAC | Series: P-7V
AirTAC P-7V200M-R2 Blind Plate Maintenance Kit Technical Details
- Full model designation: P-7V200M-R2
- Compatible series: P-7V200 blind plate series
- Seal material: HNBR (Hydrogenated Nitrile) with PTFE coating
- Temperature tolerance: -30℃ to 120℃
- Installation torque range: 2.5-3.5 N·m (threaded components)
- Port interface: G1/8 (ISO228-1 standard)
- Pressure rating: 0.05-1.0 MPa (operational), 1.5 MPa burst pressure
- Weight: 185g ±5g (including all components)
- Dimensions: 72mm(L) × 48mm(W) × 12mm(H) (packaged)
- Component count: 18 precision parts
- Surface treatment: Zinc-nickel plating (fasteners)
- Storage humidity: ≤85% RH (non-condensing)
- Compliance: RoHS 2011/65/EU
Complete overhaul kit for P-7V series blind plate maintenance, containing wear-resistant replacement seals and alignment tools. Features anti-extrusion rings designed for high-cycle applications, with chemical-resistant sealing solutions for humid or mildly corrosive environments. Includes torque-limiting installation aids.
- Preventive maintenance of pneumatic manifold systems
- Rehabilitation of leaking/blown port seals
- Retrofitting legacy P-7V units with upgraded seals
- Field service repairs in automated assembly lines
- Restoration of ISO 8573-1 Class 3 air quality compliance
Maintenance protocol:
Replace entire seal set every 500,000 cycles or 2 years (whichever comes first).
Use included alignment jig during reassembly to prevent gland groove damage.
Lubricate with ISO VG32-grade pneumatic oil before installation.
| Property | Property Value |
|---|---|
| sku | P-7V200M-R2 |
